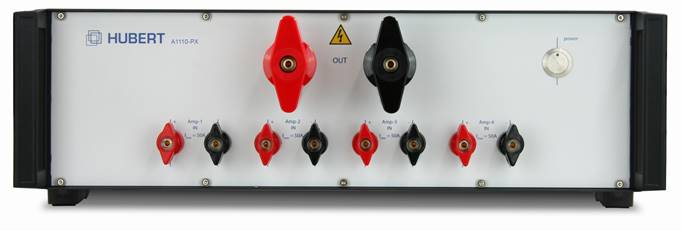

HUBERT A1110-PX Multi-Amplifier Adapter



A1110-PX

Adapter for Parallel Use of Multiple Amplifiers

In order to connect up to four identical power amplifiers for a higher output current it is important that the amplifiers are loaded equally. The adapter achieves this by its symmetrical design and low-impedance load resistance for equal sharing of the load current.

All cables required to connect the amplifiers and an external load are included in the delivery. The cables are of equal length and have the exact same electrical parameters (inductance and capacitance per unit length).



Product Variants

Multi-Amplifier Adapter A1110-P2-40 for two identical amplifiers of product families A1110-40
Multi-Amplifier Adapter A1110-P3-40 for three identical amplifiers of product families A1110-40
Multi-Amplifier Adapter A1110-P4-40 for four identical amplifiers of product families A1110-40
Multi-Amplifier Adapter A1110-P2-16 for two identical amplifiers of product families A1110-05 or A1110-16
Multi-Amplifier Adapter A1110-P3-16 for three identical amplifiers of product families A1110-05 or A1110-16
Multi-Amplifier Adapter A1110-P4-16 for four identical amplifiers of product families A1110-05 or A1110-16
