IT-E500 Power Dissipator

The IT-E500 Series power dissipator provides greater discharge capacity for the IT6500C. Each IT-E500 series power dissipater unit provides up to 3kW power sinking capability for the IT6500C series power supply. To meet higher power discharging test demand, multiple power dissipater units’ can be paralleled. The IT-E500 series power dissipater unit can extend the current sinking capability to 100%, 200%, 300% of the source range and the power sinking capability up to 300% of the Power sourcing capability. (Max. Power sink is 90kW). Meeting demanding requirements of high power discharging test.

Product Features

♦ Power range up to 3kW

♦ Support multiple power dissipators in parallel, which can meet the discharge test requirements up to 90KW
♦ current sinking capability to 100%,  power sinking capability up to 300%
♦ Option only for IT6500C

Specification

Functions and Advantages

With the power dissipater unit, loading capability is expanded

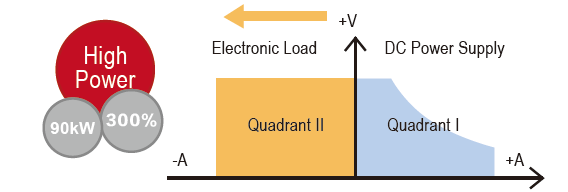

IT6500C series can be used as both a power supply and an electronic load. It greatly enlarges the current sinking range of the power supplies. It enables sinking of current and power, thus it can be applied to applications requiring fast current sink test and batteries charging/ discharging test. Each IT-E500 series power dissipater unit provides up to 3kW power sinking capability for the IT6500C series power supply. To meet higher power discharging test demand, multiple power dissipater units’ can be paralleled. The IT-E500 series power dissipater unit can extend the current sinking capability to 100%, 200%, 300% of the source range and the power sinking capability up to 300% of the Power sourcing capability. (Max. Power sink is 90kW). Meeting demanding requirements of high power discharging test.
