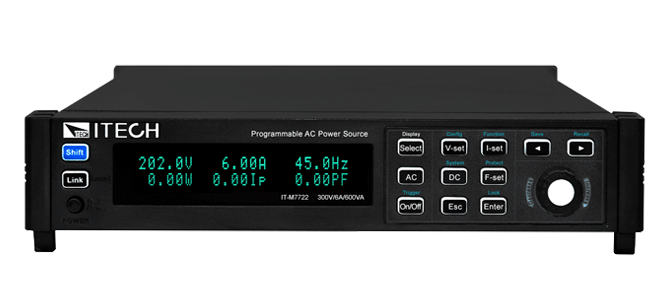

IT-M7700 High Performance Programmable AC Power Supply

ITECH newly-launched IT-M7700 High Performance Programmable AC Power Supply combines intelligence and flexibility, breaks through the huge defects of the traditional AC power source, reduces the size to only 1⁄2 1U, maximizes space utilization. Built-in power meter and arbitrary waveform generator make it convenient to simulate various arbitrary waveform outputs. IT-M7700 is designed with advanced technologies of programmable AC and DC power supplies, and can be widely used in multiple fields such as power energy products, home appliances, industrial electronics, and IEC standards testing.

* The above specifications are subject to change without prior notice.

Product Features

Features
♦ 1⁄2 1U compact design, increased space utilization
♦ AC, DC, AC + DC output modes, DC voltage offset simulation in AC + DC mode
♦ Built-in AC power meter with powerful functions
♦ Built-in abundant waveform database, including 30 harmonic distortion waveforms*1
♦ List mode, simulate civil AC working condition, realize instantaneous power interruption simulation function*1*2
♦ Arbitrary waveform output function, user can customize waveforms*1
♦ Harmonic analysis function*1*5
♦ Harmonic simulation function*1
♦ Surge/Trap function*1
♦ Front and rear edge Dimmer phase dimming function
♦ Settable output waveform start/stop phase angle *1
♦ Higher voltage available by two units in series connection*1*3*4
♦ Three phase output available by three units Y-type external connections*1*3*4

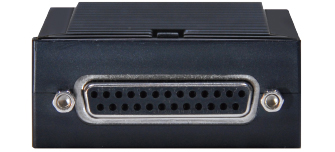

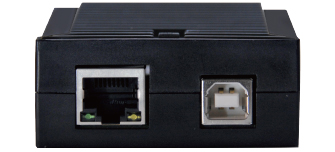

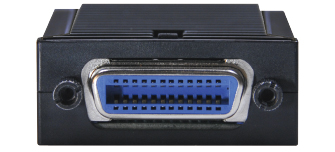

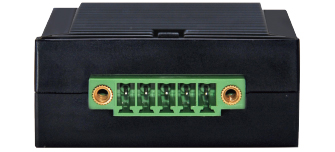

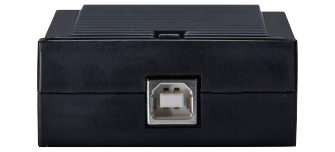

♦ Optional interfaces include RS232, CAN*4, LAN, GPIB,
♦ USB_TMC,USB_VCP, external analog, IO. Flexible and cost effective
♦ With professional software, set up programs comply with multinational security regulations and test conditions, to complete IEC related standards testing*1*4
*1 IT-M7721L/IT-M7722L does not have this function
*2 Realize by PC software
*3 IT-M7723/IT-M7724 does not have this function
*4 Coming soon
*5 Voltage harmonic analysis, current harmonic analysis is coming out

Functions and Advantages

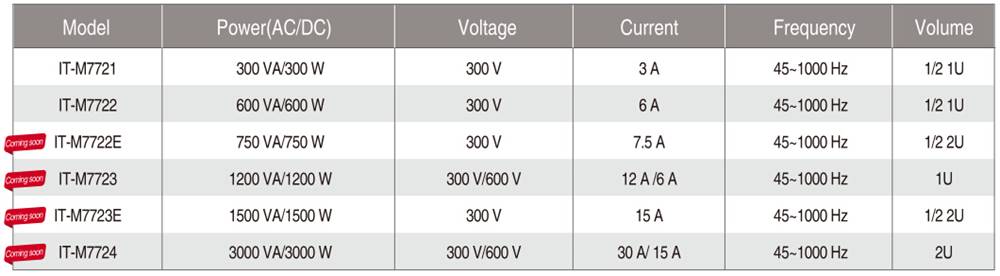

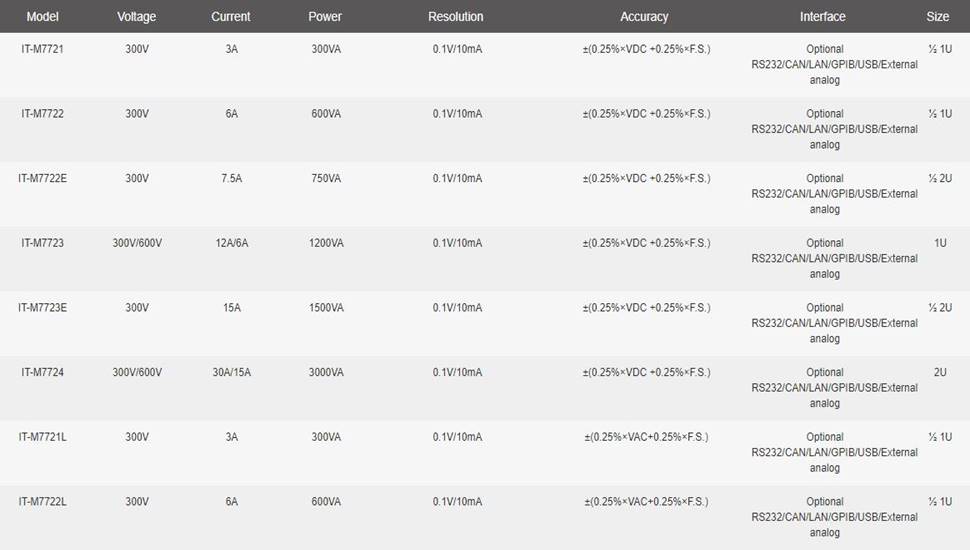

Specification

Application

♦ RD, verification and testing of the small-size power supply production
♦ IEC standard testing
♦ Communications/Telecommunications
♦ AC power simulation
♦ Manufacturing and process control
♦ Battery or LCD applications
♦ ATE testing

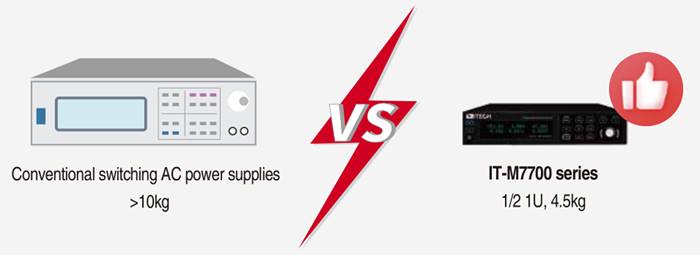

1U half rack

The conventional AC power supplies are much bigger and heavier, difficult to move. The size of IT-M7700 is only ½ 1U, but its max. power is up to 600VA. Its weight is 4.5kg only. With such high-power density design, the space is better utilized. So it can be portable, convenient for bench testing and good for system building.

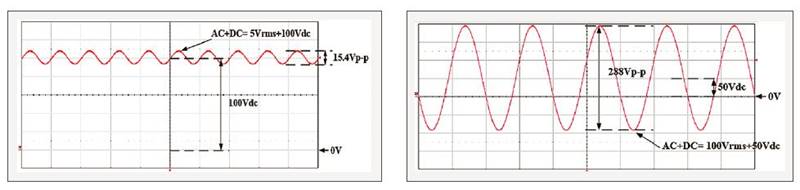

Multiple output modes: AC, DC, AC+DC

The output modes of IT-M7700 series include AC, DC, AC+DC. It can not only provide pure AC or DC output but also AC+DC output mode which can expand application fields and test DC offset element.

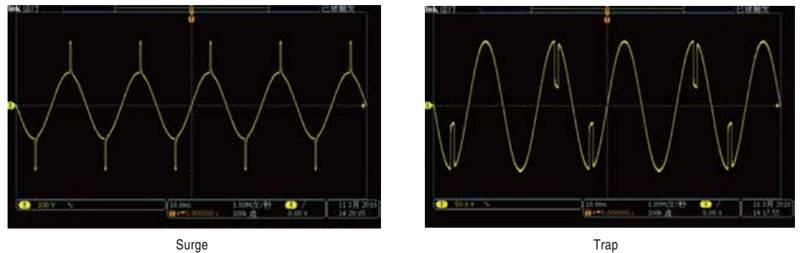

Surge / Trap Wave Function

IT-M7700 series provide surge and trap wave simulation function. User can add surge/trap wave to the output sine wave accordingly, to simulate voltage frequent fluctuation. Thus to simulate the real testing environment.

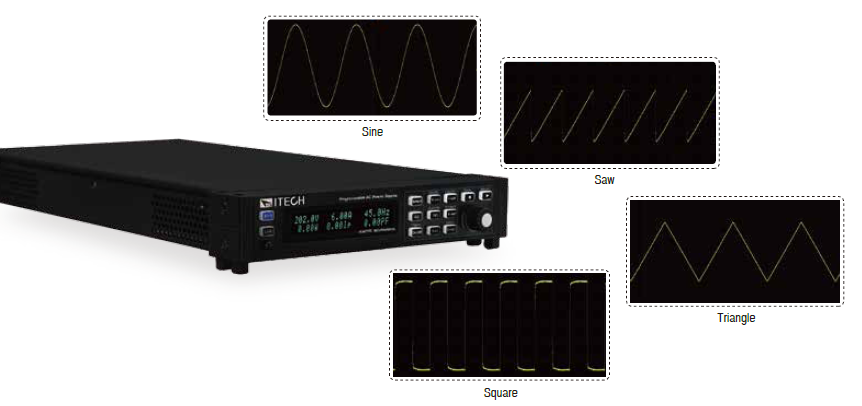

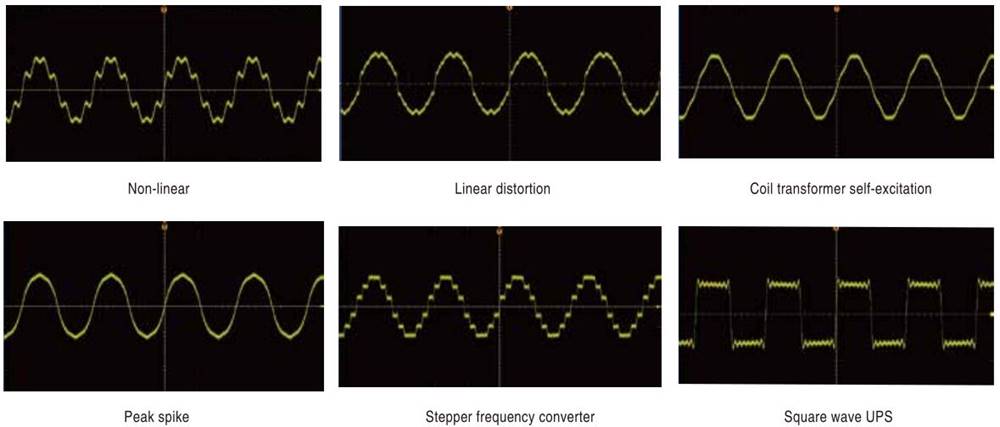

Built-in abundant waveform database

IT-M7700 series has a variety of user-defined waveforms such as square, saw and triangle. There are 30 built-in distortion waveforms for users to edit and recall, which can also be used as the basic waveform to be recalled during list programming.
