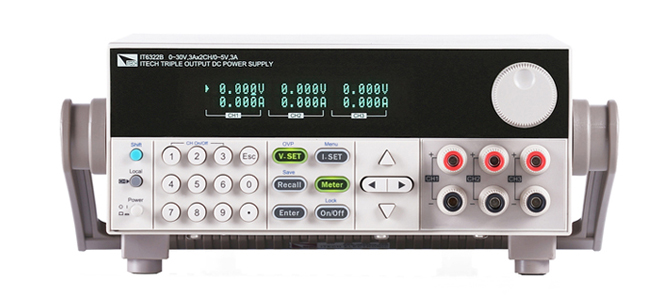

ITECH IT6300 Triple Channels DC power supply

IT6300 Triple Channels DC power supply

IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be setfrom0 to maximum rated output. This series provides series connection, parallel connection, and synchronous functions of channel, which offer multi-purpose solutions forcustomerstest.IT6300 series is with high resolution1mV / 1mAand remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.

* The above specifications are subject to change without prior notice.

Product Features

♦ Triple output voltage, all are adjustable.

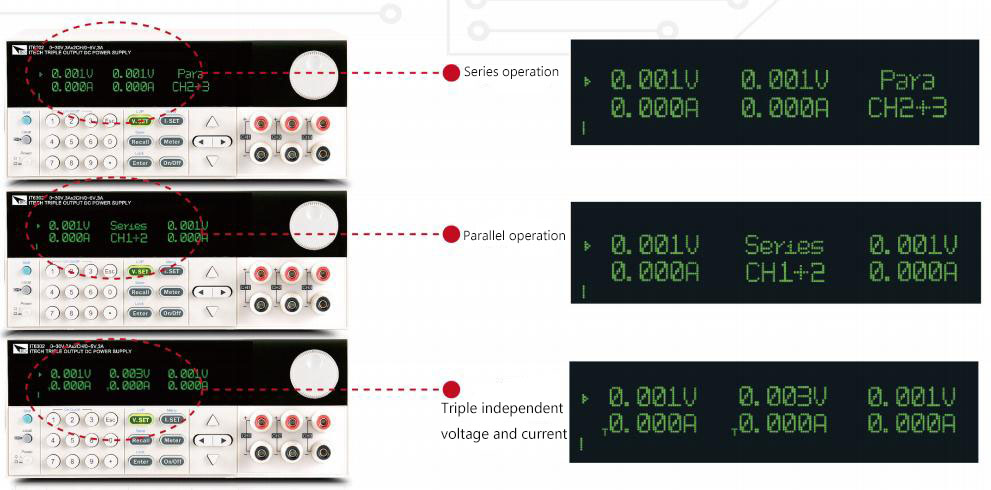

♦ Optional serial/ parallel/ track mode*1
♦ The voltage and current for each channel can be displayed at the same time
♦ Small size of 1/2 2U
♦ VFD display
♦ Function keys with LED light
♦ Adjust the digital step value via cursor
♦ Output switch control
♦ High accuracy, high resolution and high stability
♦ Remote measurement function, compensation online pressure drop*2
♦ Comprehensive protection function
♦ Intelligent fan control, reduce noise

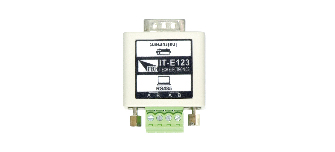

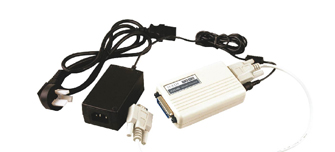

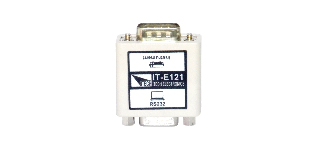

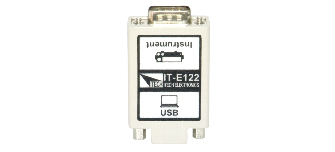

♦ Built-in RS232/USB/GPIB communication interface for part of the models

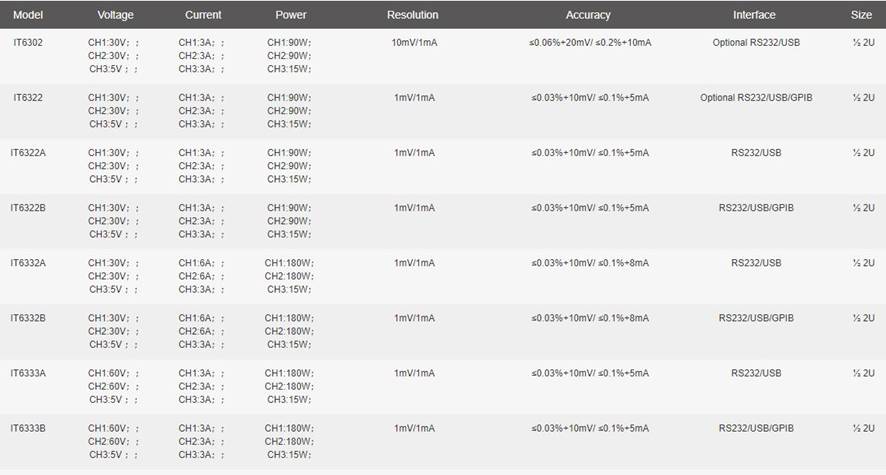

*1:Table 1 for details *2: IT6300A/B

Functions and Advantages

Track mode

CH1 and CH2, CH2 and CH3, or all three channels to be set as track mode, if any one channel parameter changed, the corresponding parameters of the other channels will also change in direct proportion.

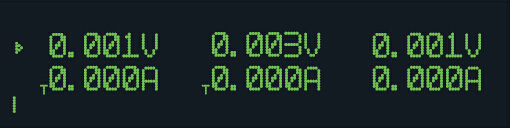

For example, set up voltage and current of CH1 and CH2 to be CH1:4V, 1A; CH2:8V, 2A. Set CH1 and CH2 in track mode, in output off and Meter state, VFD is shown below:

DC power supply
