ITECH IT8800 High Power DC Electronic Load

IT8800 High Power DC Electronic Load

IT8800 series has wide power range 150W~10KW, voltage and current measurement speed up to 50KHZ, resolution up to 0.1mV/0.01mA, adjustable measurement current rising speed 0.001A/us~2.5A/us, built-in RS232/GPIB/USB interface. IT8800 series has wide application fields because of its high performance products, it has been applied to LED lighting, automotive electronics and other fields.

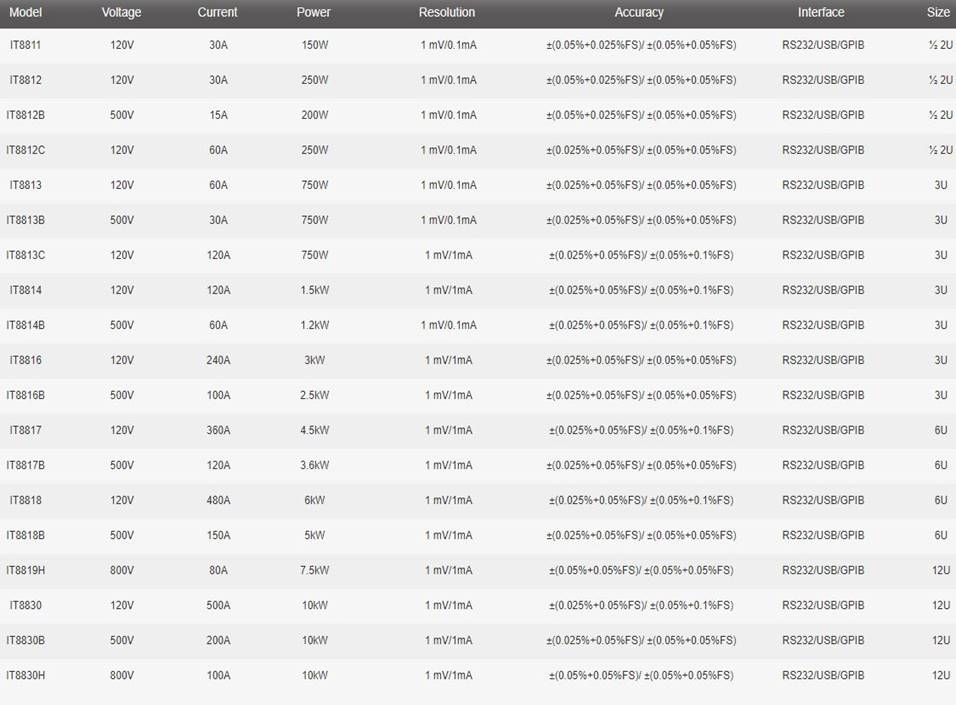

* The above specifications are subject to change without prior notice.

Product Features

♦ 150-10kW/120-800V/15-500A

♦ CV/CC/CR/CW mode
♦ Remote sense
♦ Measurement resolution:0.1mv,0.01ma
♦ Dynamic mode: up to 25 KHz
♦ Adjustable current rising slope: 0.001A/us~2.5A/us·
♦ Measurement speed: up to 50KHz ·
♦ Dynamic test, short-circuit test function
♦ Rotary knob, making the operation more easier
♦ CR-LED test
♦ OCP / OVP / CPP / OTP/ Reverse polarity protection
♦ 100 groups memory capacity
♦ Power off memory function
♦ External analog control
♦ Support VISA/USBTMC/SCPI communication protocol
♦ Built-in RS232/USB/GPIB communication interface
♦ Software monitoring via PC

Functions and Advantages

Dynamic mode up to 25KHz

Dynamic mode operation allows the electronic load to be switched between the two setting parameters according to the setting rules. Dynamic mode can be used to test the dynamic nature of the power supply, e.g. when the computer disk drive is running or stopped, the dynamic load mode can simulate change of operating current.

Adjustable rising/falling speed of current

The user can use IT8800 test the voltage rising / falling time. Enter the measure menu under config, set two voltage points. And then turn on the display on timer function, the rising / falling time will be displayed on the screen when finished.

This test is improtant for switching power supply testing, fuse testing.
