Skew calibrator
The world's first skew
calibrator for high voltage probe and high current probe.
SKEW CALIBRATOR IE-1360 FOR ACCURATE POWER LOSS MEASUREMENT
■Why
deskew is important for accurate measurement?
The delay of voltage and current probes
should be the same for accurate power measurement.

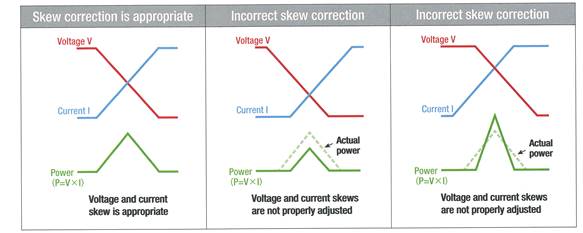

When you don't deskew
probes correctly, you could get a wrong result as in the figure down below.
・This skew calibrator can generate max.250V of
voltage pulse and max.10A of current pulse synchronously and its phase are the same.
It's suitable for deskew for high voltage probe and high
current probe using under the inverter test. For your accurate power
measurement, deskewing high voltage probe and high
current probe is important.

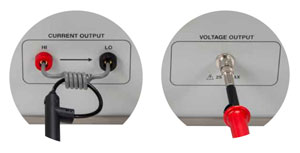

appearance
|
|
|
|
|

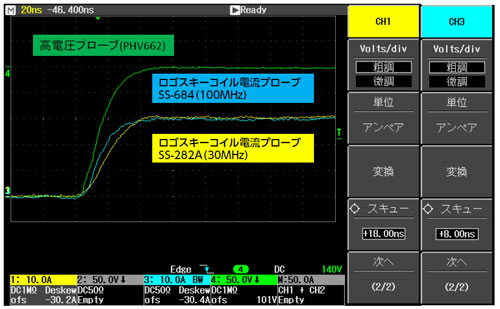

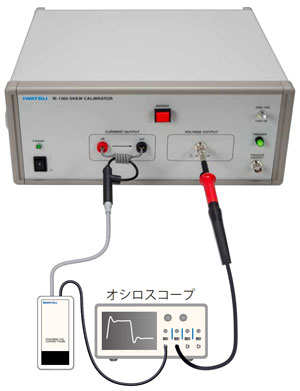

Example of use
|
|
|
|
specification
|
item |
Content |
||
|
Output
Signal |
Single
pulse of 10μs in pulse width |
||
|
Range |
2 |
||
|
Output
voltage |
Voltage |
250V |
125V |
|
Amplitude
accuracy/output resistance |
±5% / 25Ω |
||
|
Maximum
load/output terminal |
Above 100kΩ // Under12pF / BNC (female) |
||
|
Output current |
Current |
10A |
5A |
|
Amplitude
accuracy |
± 5% |
||
|

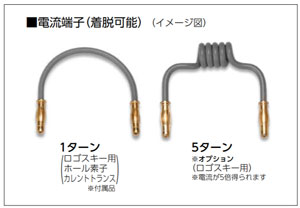

Output
terminal/droop |
1 turn / 5
turns exchangeable / under 1% / μs |
||
|

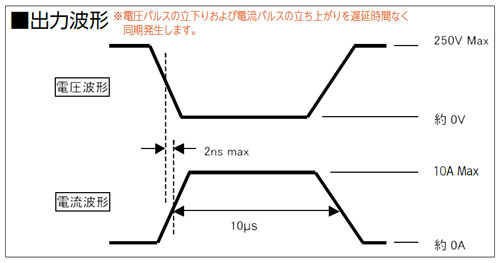

Signal/Phase |
Tr (Current) |
25ns |
20 ns |
|
Tf (Voltage) |
|||
|
Delay time |
±2ns |
±1.5ns |
|
|
*Only rising edge of current pulse and falling edge of voltage pulse are
guaranteed with standard output terminals. |
|||
|
Pulse
generation (trigger/output interval) |
A pulse is
generated by pressing the trigger button / Above 1s |
||
|
Trigger
output |
0 to 4V
(Rising edge) |
||
|
Power
supply |
100VAC
under 20VA |
||
|
Operation
temperature |
10ºC ~ 35ºC |
||
|
Dimensions
(mm) |
320W x 160H
x 270L (TBD) |
||
