Model number
|
SS-320
|
|
frequency band
|
DC to 100 MHz (-3 dB) *Refer to derating characteristics
|
|
Damping ratio
|
50:1, 500:1
|
|
Accuracy
|
±2% (20ºC to 30ºC)
*When connected to an oscilloscope with an input impedance of 1 MΩ ±1%
|
|
DC CMRR
|
-70 dB* at input voltage of 500 VDC
|
|
AC CMRR
|
-80 dB (50 Hz/60 Hz) / -50 dB (100 kHz) / -50 dB (1 MHz)
|
|
Transmission delay
|
12.5 ns (500:1, typical), 13.5 ns (50:1, typical)
|
|
Input R//C
|
4 MΩ or more // 7.0 pF or less from each
input to GND
|
|
Between inputs
|
8 MΩ or more // 3.5 pF or less
|
|
Maximum differential operating voltage
|
±1400 V (DC+AC peak, 500:1), ±140 V (DC+AC peak, 50:1)
|
|
Maximum common mode operating voltage
|
±1400 V (DC+AC peak) or ±1000 Vrms
|
|
Maximum non-destructive
(differential mode, common mode)
|
±1500 V (DC+AC peak), 1300 Vrms
|
|
Maximum output voltage range
|
±2.8 V*1 MΩ ±1% connected to oscilloscope
|
|
Output offset
|
Adjustable with other equipment to be combined
|
|
Connector output side/input side
|
BNC type/special 6-core connector
|
|
full length
|
2000 mm ±30 mm
|
|
Power cable length
|
1000 mm ± 20 mm
|
|
Input lead length
|
405 mm ± 5 mm
|
|
mass
|
450 g or less
|
|
Guaranteed temperature range
|
0ºC to +50ºC, but no dew condensation
|
|
Operating temperature/humidity
|
-10ºC to +50ºC, (no condensation) / 80%RH or less (at 40ºC)
|
|

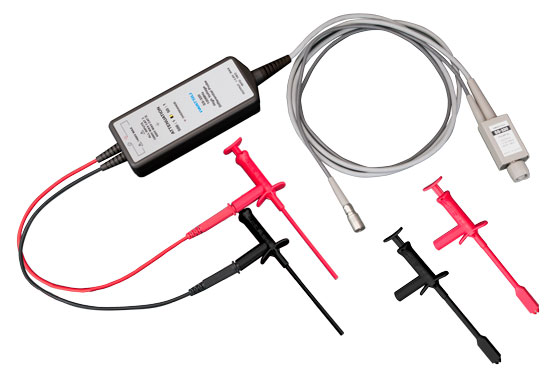

accessories
|

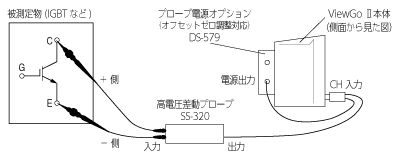

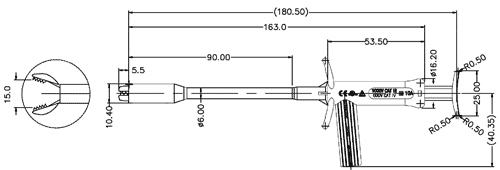

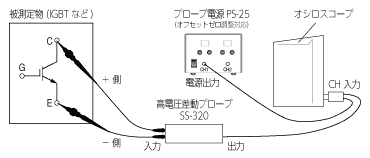

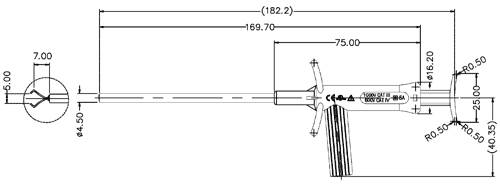

Crocodile clips (red, black) 1 each, plunger hook clips (red, black) 1
each, instruction manual
|
