Name of operating software:

1600NR   ( Method : Sensitivity )

1600NRL   ( Method : Loudness Rating )

Items of combination: 160N + 181C + 142EA-S (one set) + 142F

Test Object: Receiver unit.

Explanation: (a) Can use Model-142ES to replace Model-142EA-S, if uses Model-142ES, then, Model-142F can’t be used, user must prepare his own test jig, since Model-142F is fit with Model-142EA-S only.

(b) Has analysis and statistics (Cp, Ca, Cpk) function.

(c) Consists of LAN function, tested data can be uploaded to the Central Monitoring Unit

(d) PASS/FAIL digital signal output, can be linked with the automation installed by the customer

(e) Functions:

Frequency Response (100Hz ~ 10KHz) & Sensitivity

AC Impedance Test  ( 2 ~ 1000 Ohms )

DCR Test  ( 2 ~ 1000 Ohms )

Polarity Test

PAP Test  (Peak Acoustic Pressure Test)

Harmonic distortion test ( 0.1% ~ 20%) or buzz & rattle test

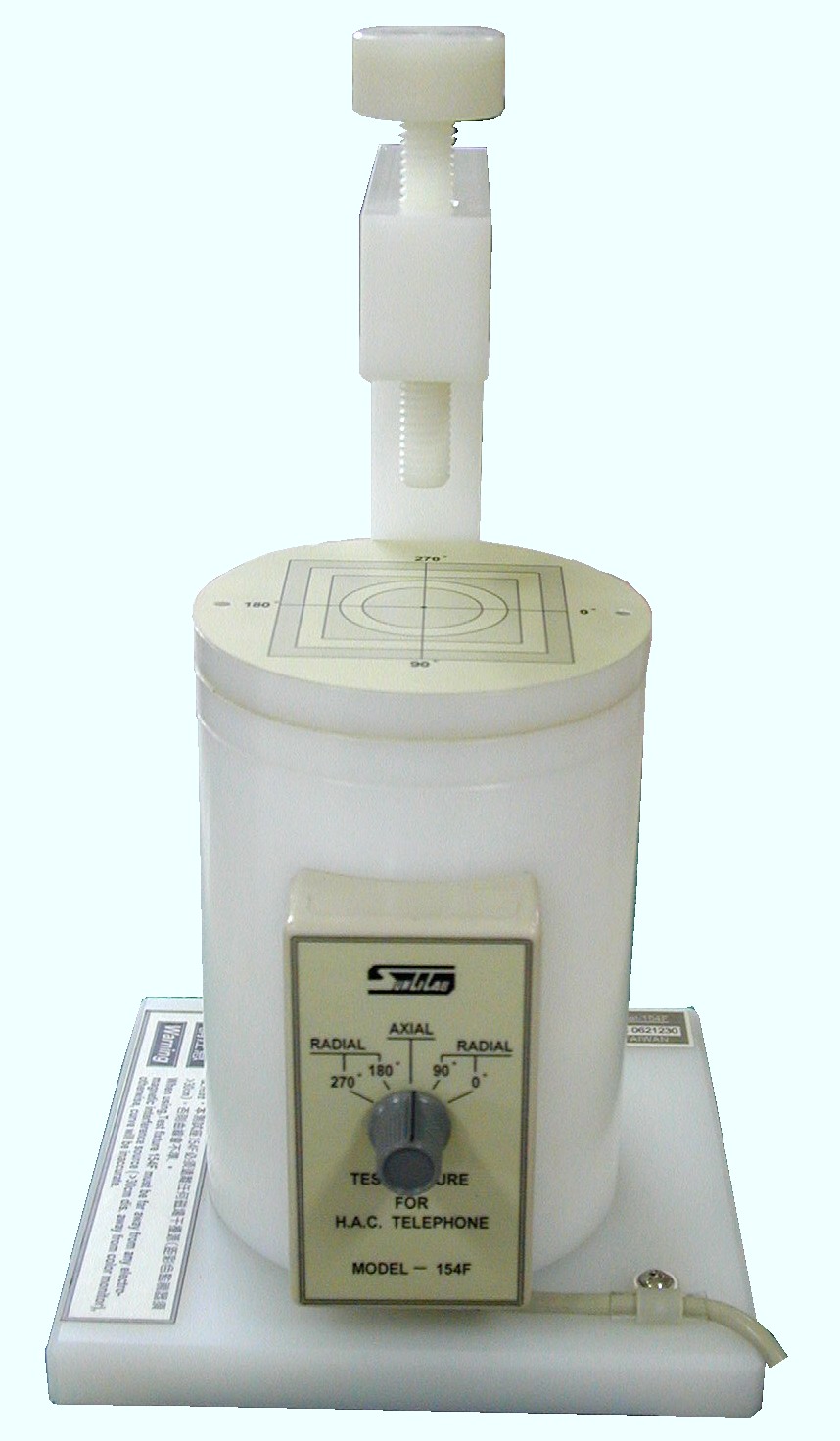

New --> H.A.C. Testing for Receiver Unit  (Using Model-154F)

Model-160N	Model-181C	Model-142EA-S	Model-154F
		Model-142F
