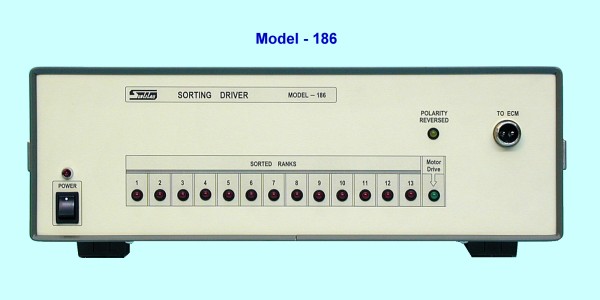

Model - 186  Sorting Driver

Model-186  Sorting Driver   when combined for use with Model – 160A ( or Model – 184 ) mainframe and user’s automatic sorting machine, can perform the automatic sorting which totally can be divided into 14 ranks. The sensitivity sorting is divided into 12 ranks (which are the same as the number of rank for the sensitivity sorting on the testing screen); Frequency response ranked at 13^th , while  the other testing items, like : The impedance, distortion, ECM current etc. of the unqualified items ranked at 14^th (When the indicators  of the  1st~13^th rank  did not light up, it belongs to 14^th rank). Model-186 is very suitable for use in the automation for the receiver, transmitter and microphone factories. The rear panel of Model-186  is designed  with terminal board numbers from  1 ~ 13  which are corresponding to the  1 ~ 13 indicators on the front panel, when the 1^st indicator light up , number 1 outlet on the terminal board will output the voltage, which is the same as actual power voltage being used, Example: When Model-186’s power cord is connected to 110V power voltage, number 1 outlet on  the terminal board will have 110V output voltage, if 220V power voltage is being connected, 220V output voltage will occur.
