2503AH High Performance Power Analyzer

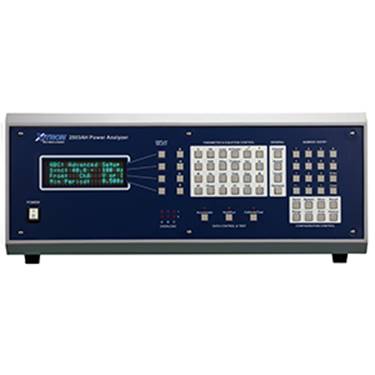

2503AH Power Analyzer
Vitrek¡¦s High Performance Power Analyzer provides high bandwidth to
500kHz and typical 0.05% accuracy. The measurement channels can be configured
independently (asynchronous or synchronous) allowing the instrument to be setup
for your specific needs.
Description
2503AH Power Analyzers are perfect for motor, lighting, power conversion and appliance test and development applications.
The 2503AH Analyzers measure power, voltage, and current up to 500 kHz with premier precision. Available parameters include V, A, W, Power Factor, Crest Factor, K Factor, THD, Harmonics, Phase, VA, VAR, W.Hr, Triplens, Impedance, Inrush, Mean-Peak Values, Efficiency- Loss, etc.
Vitrek power analysis instruments have set the standard for production testing. Independent channel control and unparalleled flexibility and speed have made the 2503AH-3CH the instrument of choice in 3-phase power analysis. The 2503AH-1CH/2CH offers cost effective solutions for single or two-phase application such as power supply and appliance testing.
Product Features and Benefits
18-bit, 500 kHz sampling speed provides 0.05% basic accuracy
Ultrafast FFT¡¦s per channel produce measurements in 10ms
3000 V Peak, 50 Amp Peak measurable with internal shunt and optional internal Hall effect CTs*
Pre-configured for ballast, motor, power supply and appliance tests
Real-time, ultra-fast, harmonic analysis
Application Specific Configurations
External CT and PT capability ratio: 0.000001- 1000000 to 1, for A/V, A/A or V/V
Frequency Measurement: 500 £gHz to 170kHz, 0.01% of reading
Measurement Period: User defined from 1 mSec to 27.8 hours
Watt, VA & VAR accuracy highest of V* Amp error or Amp* V error yields max. error for either Watts, VA, or VAR
Accumulation accuracy WHr, VAHr, AHr up to 9999.9 GWHr/GVAHr
Timing Accuracy: 0.01% + 10 mSec. start/stop error
