VG-854　Programmable Video Signal Generator

Supports up to 400 MHz Ultra Broadband, Color Difference and Three-level Signals

VG-854 is the top-of-the-line model in the VG series that is added with new features while maintaining upper compatibility with conventional analog output models, including VG-851 and VG-819. In addition to dot clock covering up to 400 MHz, color difference and three-level sync signals are provided. By using the standard program management software supporting Windows 95/98, timings and patterns can be easily set and registered. Also it is provided with features to allow users to create patterns exactly as desired, and to register natural pictures (bitmap, JPEG) as a pattern. Furthermore, the unit stores more than 100 types of preset timing/pattern data , main signals can be created by using preset timings and/or patterns. With these efficient features, the unit shows its power in development, production, inspection of ultra high definition display units of the next generation, as well as HDTV combined type display units.

･Features

･ Ultra wide dot clock range covering from 5 to 400 MHz
･ Switching of output for RGB/color difference signals (supporting various standards) is available.
･ Outputs three-level sync signals (compliant to various standards) is available.
･ Memory card is employed for program registration.
･ Conventional panel ROM can also be used as an upper-compatible device.
*Extensive features are available only when the memory card is installed.
･ A wide range of sample program data are contained.
･ Sync ON/OFF can be manually selected from a panel key.
･ Output video level can be manually set in real time.
･ RS-232C/parallel is employed for the PC interface.

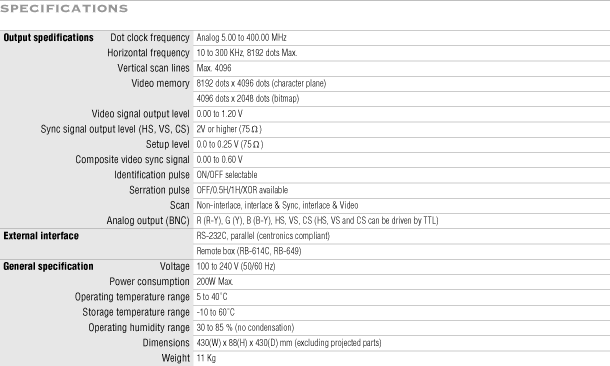

SPECIFICATION
