PA920 Ultra High Accuracy Multi-Channel Harmonic Power Analyzer

Vitrek’s PA920 Ultra-High Accuracy (0.024%) Precision Multi-Channel Harmonic Power Analyzers

Introducing the new Ultra High Accuracy Vitrek PA PA920 Precision Harmonic Power Analyzer, the newest additions to Vitrek’s family of Power Analyzer products.

The new PA920 is the most powerful, accurate and flexible power analyzer available on the market today available with 0.024% power accuracy. These new products provider faster sampling rates, bandwidth performance and greater harmonic frequency, yet still easy-to-use and affordable.

The PA920 power analyzers offer expanded power analysis options. The PA920 offers ultra high 0.024% power accuracy for all channels and improved voltage and current self-heating adders over those of other power analyzers. In addition, the PA920 provides easy channel selection for the user while offering 100 full precision readings per second and measurement bandwidths sufficient to handle 5 MHz waveforms.

When You Need Maximum Performance & Accuracy Choose Vitrek’s PA920 Series Power Analyzers!

Ultra High Power Accuracy of 0.024% For All Channels

Improved Voltage and Current Self-Heating Adders

 Faster Sampling Rates & Bandwidth Performance

Greater Harmonic Frequencies

Description

Industry’s Most Accurate Power Analyzer – Vitrek’s PA920 Series power analyzers are the industry’s most powerful and accurate power analyzer.  The PA920 offers 0.024% power accuracy, the fastest available on the market today. All Vitrek power analyzers are easy to use with a full color touchscreen enabling users to quickly and easily setup configurations, custom screens and interface commands.

Maximize Flexibility – The PA920 power analyzers offer expanded power analysis options. The PA920 offers 0.024% power for all channels and improved voltage and current self-heating adders over those of other power analyzers. In addition, the PA920 provides easy channel selection for the user while offering 100 full precision readings per second and measurement bandwidths sufficient to handle 5 MHz waveforms.

Maximum Results – For tackling tough power factor, low phase angle and high crest factor loads, the PA920 power analyzers are unbeatable. Offering full performance for crest factors as high as 100:1, the PA9xx series provides superior power measurement capabilities for the toughest power measurement applications.

Maximum Performance in a Variety of Applications – Design engineers are under constant pressure to increase efficiency and reduce excess product power consumption down to the last mW. Challenging programs like LED and HID lighting, solar panel energy output, efficiency testing on inverters and PWM motor drive systems on electric vehicles—all require fast, precise, reliable power measurement. The unequalled performance of the Vitrek PA910/920 gives you the competitive advantage—the ability to accurately capture the waveforms and power data you need to squeeze the last drop of extra energy out of your project.

Modular Design = Maximum Flexibility – The PA920 Series Power Analyzers are available in both pre-configured models or can be purchased in a modular package to provide the performance you need at a price that meets your budget. A single PA920 offers 8 available channel combinations to meet your power analysis needs.

PA920 Only Channel Cards for use with PA920 Mainframe (0.024% Accuracy)
UT Channel Card – Ultra-Precision Dual Shunt (1, 30A) Channel Card
UX Channel Card – Ultra-Precision External Current Transducer Input Channel Card
BT Channel Card – High Bandwidth Dual Shunt (1, 30A) Channel Card
BX Channel Card – High Bandwidth External Current Transducer Channel Card
KT Channel Card – Kilovolt (1.6kVrms Continuous) Dual Shunt (1, 30A) Channel Card
KX Channel Card – Kilovolt (1.6kVrms Continuous) External Current Transducer Input Channel Card
MT Channel Card – Motor Transducer Channel Card (Slot 4 only)

Harmonics Screen

To meet advanced power harmonics requirements, the PA920 displays up to 500 harmonics even at aviation power frequencies. The chart can be set to show linear, relative linear, logarithmic or relative logarithmic amplitudes. Additionally, 8 harmonics can be selected for numeric display of amplitude and phase by touching the harmonic bar of interest. The user may also import harmonic limits, which when enabled will show out of tolerance harmonics in red above the limit line.

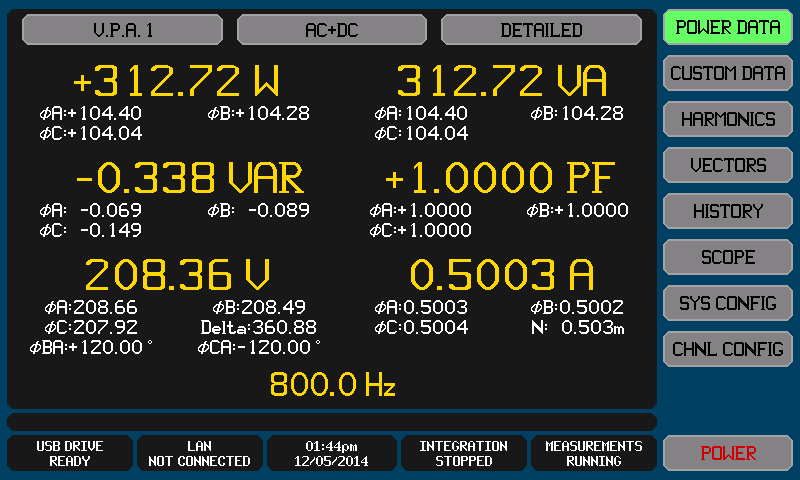

Power Data Screen

The power data screen, available with one touch, displays V, A, W, VA, VAR and PF data for any selected channel or group of channels known as a Virtual Power Analyzer™ (VPA). Up to three different VPAs can exist in in a single PA920. In addition to the primary data, peak readings, phase, CF and other parameters are also available. Integrated data results (WHr) can also be controlled and viewed from the power data screen. For users with unique data requirements, custom data screens can be built with a spreadsheet application and downloaded to the PA920 via interface or USB drive.

Scope View

Scope view offers waveform acquisition and analysis similar to a digital scope. Up to 6 signals can be displayed, each having user selectable scaling, offset and color. Timebase, trigger and trigger position are all user selectable. However, with amplitude accuracies as high as 0.03% – you are unlikely to find any other scope with this high level of precision.

Cycle View

The cycle view represents a single cycle of the voltage and or current periodic waveforms. The above waveforms represent a full 10V square wave in blue and a 50:1 zoomed in view in red. Since the user sets amplitude and scaling – the result is an almost unlimited ability to amplitude zoom to expose fine detail. The sampling is forced to be asynchronous to higher order harmonics which leads to an effective sampling rate of 384MSPS.

Vector Screen

A polar chart graphically displays the fundamental voltage and current vectors for the selected channel or VPA. For multi-phase VPAs, the inter-phase voltages and non-measured neutral phase vectors are displayed. The user may enable the display of and select the color of each vector up to a maximum of 10.

History Screen

The PA920 automatically maintains a continuous historical record of all non-harmonic measurement results and selected harmonics. Up to four user selectable parameters can be graphically displayed using the HISTORY screen. The user can display the entire recorded period up to 397 days or zoom in as far as 1/64th of the total span. This provides an almost unlimited ability to amplitude zoom and includes a cursor which may be moved throughout the period with a touch of the screen.

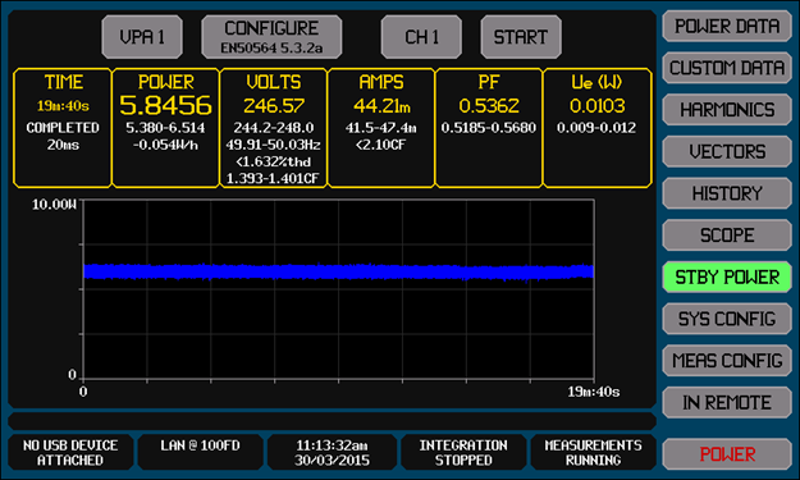

Standby Power Screen

The PA920 features built in standby power testing in accordance to EN50564:2011 (replaces IEC62301) which can be started with the press of a finger from the STBY POWER screen. All information is neatly organized onto a single screen for easy viewing and can just as easily be saved as an image file into a connected USB drive to add into any report. Various measurement methods laid out in EN50564:2011, minimum test time, and datalogging capability are all selectable. The PA920 also has the ability to perform standby power measurements independently in each configured VPA.

Product Features

• Highest Accuracy Power Analyzer Available On The Market Today
• Highest Precision Accuracy – 0.024%
• Up to 500 Harmonics at 400Hz, meets Airbus avionics harmonics measurement criteria. Bar graph also features fingertip selectable numeric amplitude and phase data
• Large, Hi-Resolution Color Display shows all the data you want with an easy-to-use touchscreen user interface to get you up and testing in no time
• Modular design lets you choose up to 4 Power Measurement Channel Cards in any combination of 3 different Channel Card types
• Built-in Data Logger – Logs up to 16 selectable data results to USB thumbdrive or internal data storage. Intervals from 10mS to 100 hours with optional time/date stamps
• Power Data Screen – displays V, A, W, VA, VAR and PF data for any selected channel or group of channels
• Custom Power Data Screens – lets you choose the color, font size, location and data you want displayed
• With selectable time base and triggering – Scope View, acts as a digital scope to capture events such as in-rush current
• Cycle View – Represents a single cycle of the voltage and current periodic waveforms sampled over many cycles within a measurement period
• Vector Screen – Displays up to 10 fundamental voltage & current vectors
• History Screen – Like a DVR, the PA920 automatically maintains a continuous historical recording of measurement data. Any data from this record may be viewed or downloaded. Pause, clear & restart functionality is available from the HISTORY screen or via interface
• Standby Power Screen – Test in accordance to EN50564:2011 with an easy to set up, easier to use built in application. One screen holds all of your necessary data.
• Effective Sampling Rate – for analysis of periodic signals within a measurement period is 384MSPS
• Measurement Resolution – 22 bit for S & W type Channel Cards, 24 bit for A type
• Up to 3 Different Virtual Power Analyzers™ (VPAs) may be configured for three phase measurements or input/output efficiency tests – so there is no need to interconnect separate units in order to make synchronous or non-synchronous group power measurements
• VPA Efficiency Grouping – Available data includes: Power totals for IN, MIDDLE and OUT efficiency groups, the power loss between any pair of groups, and the percentage efficiency between any pair of groups
• VPA Multi-Channel Wiring – Each VPA may be configured as 2ø3w (2 ch), 3ø3w (2 ch), 3ø3w (3 ch), 3ø4w (3 ch)
• Connectivity – Ethernet, High Speed Serial and USB (client) control interfaces
• Optional Multi-Unit (Option MU) connection available to combine multiple PA920 units to enable you to make measurements with up to thousands of channels
• Front Panel USB Drive Interface – Permits data logging to a file, ‘screen shot’ capture, easy import and export of: display and measurement configurations & custom data screen definitions
• Available MT type Channel Card for motor torque & speed inputs
• CE mark certified to EN61010
• 2 Year Parts & Labor Warranty, 2 Year Accuracy Specs and calibration cycle
• Made in the USA
