Graphtec GL220 GL220 |
 |
||||||||||||||||||||||||||||||||||
| Voltage , Temperature , Humidity , Pulse , Logic | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Specifications , Download brochure , Options and supplies , Software support |
|||||||||||||||||||||||||||||||||||
| Marking the evolution of the GL220 to the one-datalogger-per-person stage | |||||||||||||||||||||||||||||||||||
10 isolated channels, multifunction input Despite its small footprint, the GL220 offers an isolated input system that ensures no channel is affected by different signals input to other channels, eliminating wiring concerns. This multifunction device accepts voltage, temperature, humidity, pulse, and logic signal inputs and enables combined measurements, even of disparate phenomena like temperature/humidity and voltage. |
 |
||||||||||||||||||||||||||||||||||
| Voltage : +/-20 mV to +/-500 V | |||||||||||||||||||||||||||||||||||
| Temperature : Thermocouples: K, J, E, T, R, S, B, N, W | |||||||||||||||||||||||||||||||||||
| Humidity : 0 to 100% (the B-530 option is required) | |||||||||||||||||||||||||||||||||||
| Pulse : 4 channels Count, Inst., Rpm | |||||||||||||||||||||||||||||||||||
| Logic : 4 channels ‡ Select either Pulse or Logic | |||||||||||||||||||||||||||||||||||
Supports sampling speeds up to 10 msProvides faster sampling for voltage measurements. Reducing the number of channels allows faster data captures (up to 10 ms )..
|
|||||||||||||||||||||||||||||||||||
| Easy operation and device setup | |||||||||||||||||||||||||||||||||||
With ease of use similar to mobile phones, this user-friendly device permits one-thumb operation. Careful thought has gone into the configuration of the input and output terminals to optimize the GL200A for hand-held use. To further simply device setup, users can make range settings in the Amp setting screen while viewing waveforms. Checkpoint Two different users - User 1 and User 2 - can enter setting parameters are saved to memory. |
 |
||||||||||||||||||||||||||||||||||
Vivid 4.3-inch TFT color LCDThe bright, easy-to-read 4.3-inch TFT color LCD monitor makes it even easier to check measurement parameter settings or to review measurement data as waveforms or digital values. |
|||||||||||||||||||||||||||||||||||
Waveform display screen(Analog + Digital)
This screen displays measured values as analog waveforms and digital values. The digital values for the selected channel are displayed in enlarged format for easy review. A waveforms-only screen is also provided. |
2-screen display
This display format enables comparisons of waveforms for the current data against those for past data. (Y-T display only)
|
||||||||||||||||||||||||||||||||||
Digital screen
This screen displays measured values as digital values. Statistical calculation results can be displayed simultaneously. |
Search screen
When measurements are complete, this screen lets the user search for points at which an alarm was generated or for user-specified values. This makes it especially easy to locate abnormal or other specific values. |
Accepts USB memory sticks and permits easy PC connections | |||||||||||||||||||||||||||||||||
Data can be captured directly to a USB memory stick inserted into the GL200A's USB memory stick port. The data captured to the USB memory stick can be viewed in Excel on any PC connected to the GL200A. The simple USB cable connection between the PC and the GL200A enables PC control and setup of the GL220, as well as real-time data transfers. |
 |
||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Long-term data capture and worry-free measurement The built-in flash memory means data is retained even when the power supply is interrupted. For long-term measurement applications, simply replace the USB memory stick, even in mid-measurement. While the USB memory stick is being replaced, data for up to 5 minutes is captured to the GL200's backup memory. A file close operation is performed once a minute to ensure that measurement data is retained, even if the power supply is suddenly turned off Example of 10-channel analog measurement

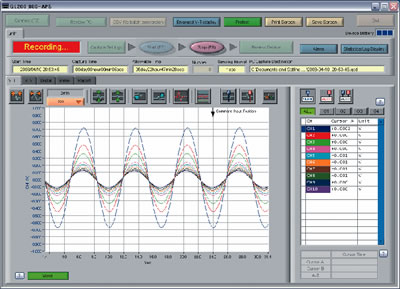

Dedicated software for multi-channel measurement provided standard
|
|||||||||||||||||||||||||||||||||||
Simple operations anyone can perform Easy-to-use software that uses icon keys for intuitive operations
|
Convenient functions Convenient, built-in measurement functions.
|
 |
|||||||||||||||||||||||||||||||||
Simple setup screens The number of setup screens has been reduced to five. Settings are easily made while viewing input waveforms.
|
|||||||||||||||||||||||||||||||||||
Wide selection of measurement screensSix measurement screens are provided: Y-T, Y-T (Expanded), X-Y, Digital, Meter and Report. A built-in function enables measured values to be written directly to an Excel file. (Up to 100 ms sampling) |
|||||||||||||||||||||||||||||||||||
Amp setting screen |
Digital display
|
||||||||||||||||||||||||||||||||||
Choice of Replay display screensSelect one of three Replay display screens: Y-T, X-Y and Digital. |
|||||||||||||||||||||||||||||||||||
Y-T display |
Replay Digital display
|
||||||||||||||||||||||||||||||||||
Up to 100 channels when a PC is used 6 Using the PC, 1 unit of PC can measure max. 100 ch, or up to 10 units can be connected. *The data display and data file varies according to each unit.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
