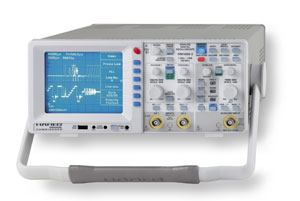

HM1008-2
100 MHz CombiScope® with FFT
 |
1 GSa/s Real Time Sampling, 10 GSa/s Random Sampling |
|
1 MPt memory per channel Memory Zoom up to 40,000:1 |
|
FFT for spectral analysis |
|
2 Channels |
|
Deflection coefficients: 1 mV/cm – 20 V/cm, Time Base: 50 s/cm – 5 ns/cm |
|
8-Bit Low Noise Flash A/D Converters |
|
Acquisition modes: Single, Refresh, Average, Envelope, Roll, Peak-Detect |
|
Front USB-Stick Connector for Screenshots |
|
USB/RS-232, Optional: IEEE-488, Ethernet/USB |
|
Signal display: Yt, XY and FFT; Interpolation: Sinx/x, Pulse, Dot Join (linear) |

|
|
|
|
