CD SERIES DC POWER SUPPLIES 35V~700V  65 TYPES

PAGE 1

General Specifications:

Constant voltage temperature coefficient : 50~100 p. p. m. /oC
Constant current temperature coefficient : 300 p.p.m./oC
Constant voltage response time : 50~100µS( Except AS type)
Constant voltage response time : 50mS(Except AS type)
Ripple noise : 5Hz~1MHz ±3dB bandwidth, average value indication, measured  by grounding plus or minus output with an
rms  value display AC voltage waveform
Digital voltage meter : Standard 3 1/2 Place, Option 4 1/2 Place
Digital Current meter : Standard 3 1/2 Place, Option 4 1/2 Place
Digital meter resolution: 3 1/2 Place , +/- 0.1%  +/- 2C 4 1/2 Place ,+/- 0.01% +/- 2C
Output polarity : position or negative ground (Chassis)
Cooling system :Forced air cooling
Insulation resistance :
Chassis-input   : 20M omh 500VDC min
Output-chassis : 20M omh 500VDC min
Withstand voltage : Chassis-input 1500VAC ,1min
Operating environment :Temperature 0~40 oC ,Humidity10% ~ 90% RH
Constant voltage resolution: 10 turns potentiometer
Constant current resolution: Single turns , 10 turns potentiometer (Option)
Output terminal : Front panel 10A terminal / Rear  panel terminal or copper bus way
Link : serial or parallel connect one or multiple
Effect : 65% at rated voltage ,current
Protection Devices :
1.Constant voltage , constant current automatic crossover
2.Variable over voltage protector OVP : (1%~100%)
3.Over current protection : over rated current 110% enable
4.Over temperature protector : Semiconductor cooling heat  sink section (90oC)
5.Input/output fuse
6.Main transformer temperature sensor
7.Shut down with Input voltage  +/- 20% changed
External input voltage :0 ~ 10V (must be floating connection)
Remark : Model Above 150V(Include) , Standard Architecture With AS Type.
Model Number Define :
CD  350 -  010  AS	(1)CD : IDRC Linear Regulator DC Power
(1)   (2)    (3)   (4)	(2)Output Voltage : 350 Means 350V (35V ~ 700 V )
	(3)Output Current : 010 Means 10A

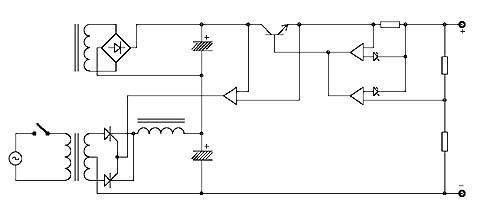

	(4)Configiration : AS : Piggy-back regulator       PR : Pre-regulator
Input Voltage : Power Souce Voltage Can be Changed to Other at Request
Consult the Factory The Customer Specification.
Specifications Subject to Change Without Notice.
Option :  2 CH  Isolated D/A Card 12-bit Resolution For PC ISA Bus.<IMAGE>
Option : GPIB / RS232 Interface Controller
Option :  4 1/2 Place True rms Current Meter
