A1500 amplifier system

A1500 amplifier system (manufactured by HUBERT)

The A1500 amplifier system can be connected in series, parallel, or serial/parallel with the controller as the center to achieve higher voltage and larger current [multi-stage connection].

Features

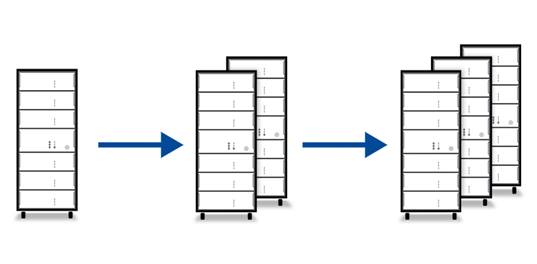

· Up to 18 units can be combined and expanded.

· Amplifier control and output control by remote control

· Meet higher voltage and current needs

MAS SLIDE 1

MAS SLIDE 2

A1500 amplifier system

[Application example]

■Voltage fluctuation test standard for electrical components of automobile manufacturers around the world-
LV148 70V/680A, LV123 1000V/10A, VW80300-

■ Transformer test Current sensor test-
400V/10A, 100V/160A-

■Reactor and capacitor test

[Combination example]

■Serial amplifier system-
1000V/10A-

■Parallel amplifier system
-70V/680A-

■Amplifier system with serial/parallel switching function-
400V/10A, 100V/160A, transformer test, current sensor test-

■Current control amplifier-
50V/160A, maximum 100kHz-

Examples of Realized Projects

Let‘s talk about YOUR application!
