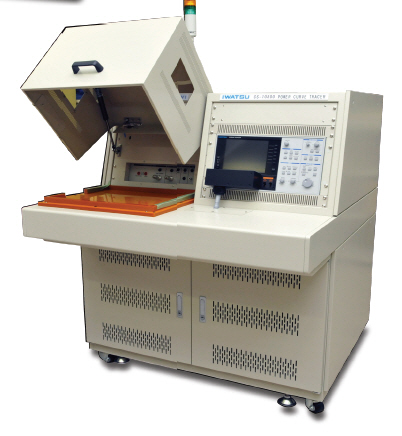

CS-10400 CS-10800 Curve Tracer (I-V curve measurement such as IGBTs)
|
CS-10400 CS-10800 suitable for various semiconductor I-V curve measurement such as IGBTs, MOS-FETs, Transistors, Diodes, etc
|
| Collector supply | CS-5100 | CS-5200 | |||||||||||||||||||
| Mode | High voltage 1 | AC, ± Rectified SIN, ± DC, ± LEAKAGE |
|||||||||||||||||||
| High voltage 2 | +DC |
||||||||||||||||||||
| High voltage 2 | - |
± Pulse |
|||||||||||||||||||
| Maximum peak power | High voltage 1 | 120mW, 1.2W, 12W, 120W, 390W ( *390W can be selected exculuding the maximum peak voltage setting at 3,000 range.) | |||||||||||||||||||
| High voltage 2 | 40W, 400W, 4kW |
||||||||||||||||||||
| High voltage 2 | 600W, 6kW, 60kW |
600W, 6kW, 60kW, 64kW |
|||||||||||||||||||
| High voltage mode1 |
|
||||||||||||||||||||
| Loop compensation | The floating capacitance between the collector terminal and the ground of the fixture is compensated by the hardware in the high voltage mode. Digital compensation is also available. | ||||||||||||||||||||
| High voltage mode2 |
|
||||||||||||||||||||
| High current mode (pulse only) |
|
|
|||||||||||||||||||
| Pulse width / measurement point | The pulse width is variable in the range from 50us to 400us.(50us to 1,200 us / over 4kV)Measurement points can be specified (with a resolution of 10us/step) | ||||||||||||||||||||
| Maximum data points | 20 to 1,000 points can be specified per trace |
||||||||||||||||||||
| Step generator | |||||||||||||||||||||
| Current mode | Amplitude range: 50 nA to 200mA, 21 ranges, 1-2-5 step Maximum current: ±2A / Offset ± 10 times STEP AMPLITUDE setting | ||||||||||||||||||||
| Voltage mode | Amplitude range: 50 nA to 2V, 6 ranges, 1-2-5 step Maximum current: ±40V / Offset ± 10 times STEP AMPLITUDE setting | ||||||||||||||||||||
| Step rate | Staircase wave: 2times of 50 Hz or 60 Hz (50 Hz or 60 Hz in the AC mode) Pulse: The pulse changes in the range from 80ms to 1,000 ms. (The lowest frequency limited by the maximum peak power consumption setting) | ||||||||||||||||||||
| Pulse step | The pulse width is variable in the range from 50us to 400us at 10us resolution |
||||||||||||||||||||
| Number of steps | 0 to 20 steps | ||||||||||||||||||||
| AUX output | |||||||||||||||||||||
| Range | OFF, -40 to +40 V, variable with at 100mV resolution |
||||||||||||||||||||
| Vertical axis | |||||||||||||||||||||
| Collecto current | High voltage | 1 uA/div to 2 A/div, 20 steps, 1-2-5 switching |
|||||||||||||||||||
| High current | 100 mA/div to 1000 A/div, 13 ranges, at 1-2-5 step |
||||||||||||||||||||
| Emitter current(LEAKAGE) | 1 uA/div - 2 A/div, 20 steps, 1-2-5 switching |
||||||||||||||||||||
| Horizontal axis | |||||||||||||||||||||
| Collector voltage | High voltage | 50 mV/div to 500 V/div, 13 ranges, at 1-2-5 step |
|||||||||||||||||||
| High current | 50 mV/div to 1000 V/div, 14 ranges, at 1-2-5 step |
||||||||||||||||||||
| Base / emitter voltage | 50 mV/div to 10 V/div, 8 ranges, at 1-2-5 step |
||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||
| Display | 8.4-inch colour TFT-LCD (SVGA 800 x 600 pixels) | ||||||||||||||||||||
| Data save / recall | Internal: memory ( step: 256, REF waveform: 4) External: Removable storage connected to the USB port (setup, waveform save / recall, screen hard copy) | ||||||||||||||||||||
| USB | 1 port (USB 1.1) | ||||||||||||||||||||
| Remote control | Remote control by LAN: 1 port (100BASE-TX) | ||||||||||||||||||||
| Mechanism section | |||||||||||||||||||||
| Dimensions (mm) | 1,110 (W) x 1,150 (L) x 1,216 (H) (Without the external projection portion) | ||||||||||||||||||||
