High-voltage Probes

High-voltage Probes SS-0170R / SS-0171R

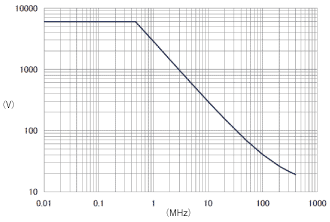

SS-0170R / SS-0171R BNC adapter SS-0169 (Option)	SS-0170R Derating curve

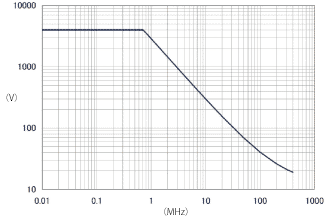

	SS-0171R Derating curve

High-voltage Probes SS-0170R / SS-0171R Specifications

item	SS-0170R	SS-0171R
Input enduring voltage *Derating curve reference	CATⅠ6,000V(DC+AC peak) CATⅡ1,000V（DC+AC peak）	CATⅠ4,000V(DC+AC peak) CATⅡ1,000V（DC+AC peak）
Frequency bandwidth	DC to 400 MHz(±2 dＢ)　*Derating curve reference
Attenuation ratio	100:1±3.0 % 以内
Input impedance	66.7 MΩ±2 %//4 pF 以下
Capacitance(Waveform compensation range)	6 pF to 18 pF
Connector	BNC type
Total length / Weight	Approx.2.0 m / Approx.88 g
Environment conditions
Guaranteed temperature range	5°C to 40 °C(no dew condensation)
Guaranteed humidity range	Humidity of 80% at temperature of 31°C or less and relative humidity linearly reduced up to 50% of the humidity at 40°C
Operating temperature range	-10°C to 50 °C(no dew condensation)
Storage temperature range	-20°C to 70 °C(no dew condensation)

High-voltage Probes SS-0170R / SS-0171R Accessories

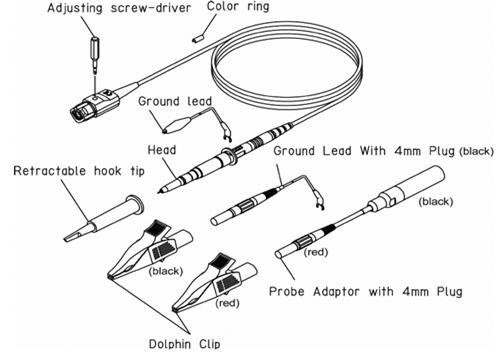

SS-0170R / SS-0171R composition

Items	Quantities
Retractable hook tip	1
Ground lead	1
Color rings (red, yellow, blue, and green)	4 x 2
Dolphin clips (red and black)	2 x 1
4mm Probe adaptor with plug	1
4mm Ground lead with plug (black)	1
Adjusting screw-driver	1
Instruction manual (this document)	1

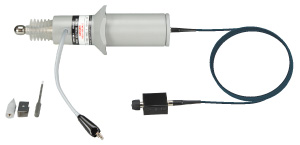

High-voltage Probe HV-P60A

High-voltage Probes HV-P60A HV-P60A

	High-voltage waveforms of up to DC 60 kV, pulse 80 kV measured by oscilloscope

	Wide bandwidth, DC to 50 MHz

	Maintenance-free, due to use of silicon rubber - guarantees stable withstand voltage

Specifications
Maximum input voltage	DC 60 kV or AC peak* Single-shot pulse of 80 kV, standard pulse wave
Bandwidth	DC to 50 MHz, within -3 dB
Rise time	7 ns or less (for probes only)
Input RC	1,000 MW ±5% //5 pF ±2 pF
Attenuation	2000:1 ±5%
Cable length	Approx. 4 m
Connector	BNC type
Used for	Oscilloscope with input RC: 1 MW, 10 to 40 pF
Weight	Approx. 3.2 kg (including accessories)
Accessories	Matching box, clamp, probe tip, ground lead, adjusting screwdriver, accessory bag
Options	High-voltage probe stand SK-301 (produced upon order) The SK-301 can be used with both the HV-P60A/60 and the HV-P30A/30. It is attached by turning the probe bracket upside down (for HV-P60A/HV-P60/HV-P30A/HV-P30).
* The P-P voltage drops if the CW is 100 kHz or greater.

This is a passive probe that measures high-voltage waveforms by connecting to an oscilloscope, and has the following characteristics: the bandwidth is DC to 50 MHz, the maximum input is DC 60 kV, and the attenuation is 2000:1.

Characteristic curve

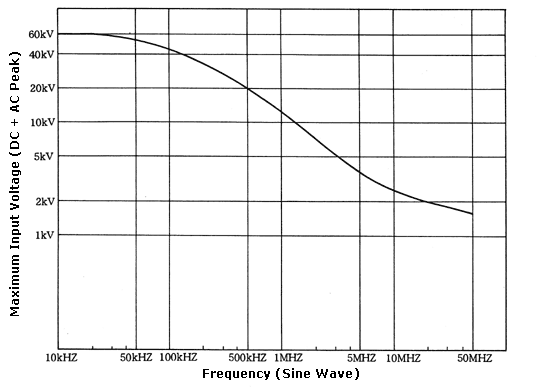

Maximum Input Voltage and Frequency (Sine Wave) [HV-P60]

Maximum Input Voltage and Frequency (Sine Wave) [HV-P60A]

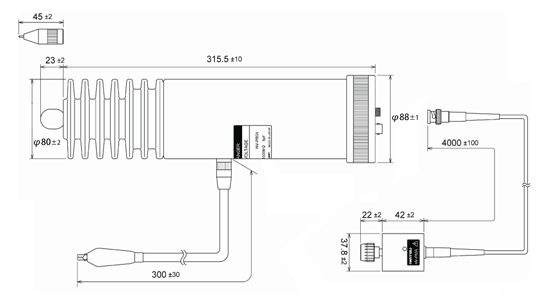

Dimensions

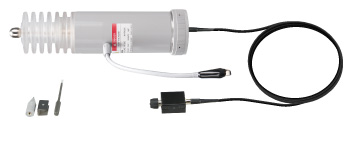

Appearance

High-voltage Probe HV-P30A

HV-P30A
HV-P30A

	High-voltage waveforms of up to DC 30 kV, pulse 40 kV measured by oscilloscope

	Wide bandwidth, DC to 50 MHz

	Maintenance-free, due to use of silicon rubber - guarantees stable withstand voltage

Specifications
Maximum input voltage	DC 30 kV or DC + AC peak* Single-shot pulse of 40 kV, repetitive signal
Bandwidth	DC to 50 MHz, within -3dB
Rise time	7 ns or less
Input RC	100 MW ±5% //7 pF or less
Attenuation	1000:1 ±5%
Cable length	Approx. 3 m
Connector	BNC type
Used for	Oscilloscope with input RC: 1 MW, 10 to 40 pF
Weight	Approx. 2.5 kg (including accessories)
Accessories	Matching box, clamp, probe tip, ground lead, adjusting screwdriver, accessory bag
Options	High-voltage probe stand SK-301 (produced upon order) The SK-301 can be used with both the HV-P60A/60 and the HV-P30A/30. It is attached by turning the probe bracket upside down (for HV-P60A/HV-P60/HV-P30A/HV-P30).
* The P-P voltage drops if the CW is 100 kHz or greater.

Characteristic curve

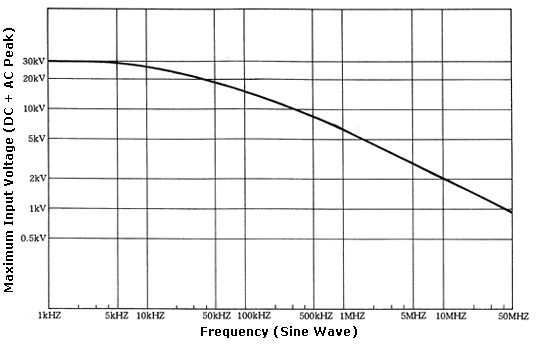

Maximum Input Voltage and Frequency (Sine Wave) [HV-P30]

Maximum Input Voltage and Frequency (Sine Wave) [HV-P30A]

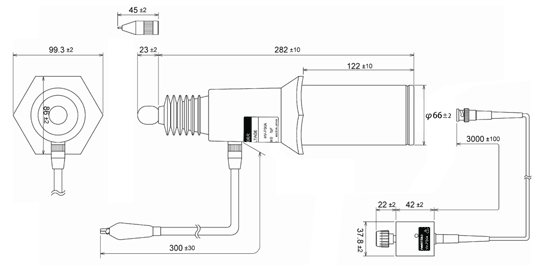

Dimensions

Appearance
