Hall element type current probe SS-270 / SS-260 / SS-250 / SS-240A

SS-250/SS-240A

SS-250 / SS-240A main unit ( power supply is required separately)

■	Compatible with various applications
	It is effective for wideband and current waveform observation of switching power supplies, optical disk manufacturing lines, semiconductor power devices, etc.

■	Main features

	Low noise characteristics for easy observation of milliamperes order

	Wide band DC to 100MHz (SS-250)/DC to 50MHz (SS-240A)

	Achieves high sensitivity and wide band by adopting thin film Hall element

	Models equipped with a power supply for probes that can be directly powered from an oscilloscope TS -81000, TS-80600, SS-7840H, SS-7840, SS-7830, TS-8500, SS-7825

	Clamp type for easy measurement without disconnecting the electric circuit

	Equipped with simple protection function for excessive input

	Can be used with measuring instruments that do not have a probe power supply ( power can be supplied by the optional probe power supply PS-26 )

■	Product Specifications

item		SS-250	SS-240A
frequency band		DC to 100MHz (-3dB)	DC to 50MHz (-3dB)
Maximum allowable input current		30A rms (maximum input range), 50A peak (maximum peak current) non-continuously
Output sensitivity		0.1V/A
Accuracy of sensitivity		・0 to 30A rms, DC and 　± 45 % AC 45 to 66Hz ±1.0% of reading ±10mA (with probe alone) ・Over 30A rms and 50A peak or less, 　±2.0% of DC and AC 45 to 66Hz reading (in probe only)
noise		2.5mA rms or less (observed with an oscilloscope with a bandwidth of 20MHz)
power consumption		5.3VA max	5.6VA max
Power-supply voltage		±12V ±0.5V
Operating temperature and humidity range		0℃ to +40℃, 80%RH or less (no condensation)
Storage temperature and humidity range		-10℃～+50℃, 80%RH or less (no condensation)
Operating altitude		Altitude 2000m or less (atmospheric pressure about 79kPa) Indoor
Effect of external magnetic field		5mA maximum (DC and 60Hz, 400A/m AC magnetic field)	20mA maximum (DC and 60Hz, 400A/m AC magnetic field)
Maximum circuit voltage used		300V, CAT I (insulated conductor)
Measurable conductor diameter		φ5 mm
Cable length	Sensor cable	About 1.5m
	power cable	About 1m
size	Sensor part	Approx. 175W x 18H x 40D mm
	Termination section	About 27W x 55H x 18D mm
mass		About 240g	About 230g
Compliant standard	safety	EN61010-2-032:2002 Measurement category I (expected transient overvoltage 1500V), pollution degree 2
	EMC	EN61326:1997+A1:1988+A2:2001
accessories		Instruction manual (1), hard case (1)

*	Items related to performance and accuracy are 23°C ± 5°C, and 30 minutes after power is turned on.

■	Characteristic diagram

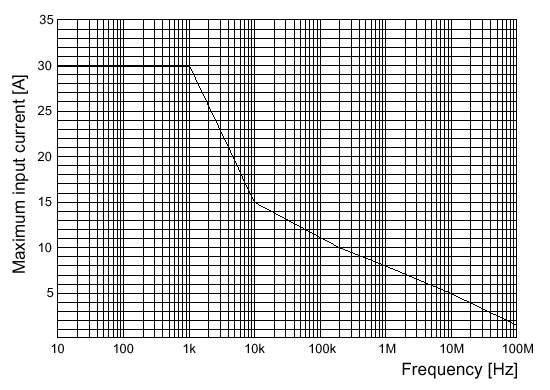

SS-250 Continuous maximum input range (frequency derating)

SS-250 continuous maximum input range graph

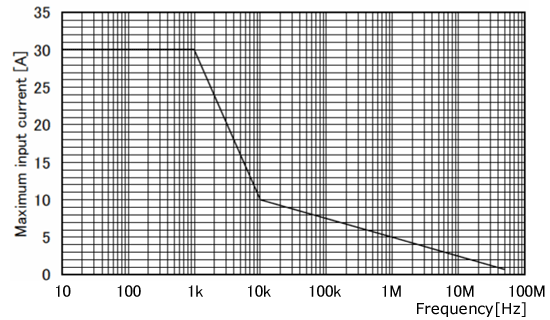

SS-240A Continuous maximum input range (frequency derating)

SS-240A continuous maximum input range graph

*	It can be used as it is for the model that has the power supply terminal for the active probe in the oscilloscope body. In addition, for models that do not have a power supply terminal for active probe, you can use this current probe by using a separately sold power supply (PS-26).
*	If the input BNC terminal of the oscilloscope is buried in the outer case and the SS-250/SS-240A connection is obstructed (Our product is Simplified King), please prepare a conversion BNC plug for the jack plug. ..
*	When the SS-250/SS-240A is used with an oscilloscope equipped with a probe power supply and the measured current value is large, the current probe power supply PS-26 may be required.
*	If the measured current value is large, the PS-26 power supply for current probe may not be able to use two SS-250/SS-240A simultaneously.

Note
1.	To avoid short circuit and personal injury, please use this product on the electric circuit below the maximum operating circuit voltage.
2.	Do not use with bare conductors to avoid a short circuit or personal injury when the tip of the clamp core is opened.

Power Supply PS-26 for SS-270 / SS-260 / SS-250 / SS-240A / SS-240

PS-26

This is the current probe power supply used when measuring with an oscilloscope that does not have an active probe power supply.

Performance
Compatible current probe		SS-270 / SS-260 / SS-250 / SS-240A / SS-240
Number of power connectors		2
Output voltage		±12V ±0.5V
Output current		Maximum 600mA (sum value of each channel)
Operating temperature and humidity range		0℃ to +40℃, 80%RH or less (no condensation)
Storage temperature and humidity range		-10℃～+50℃, 80%RH or less (no condensation)
Operating altitude		Indoor up to an altitude of 2000 m
Power-supply voltage		AC100V (120V, 220V, 240V can be set) (The voltage fluctuation of ±10% against the power supply voltage is taken into consideration.)
Rated power frequency		50Hz / 60Hz
power consumption		Up to 20VA
External dimensions		About 73W x 110H x 186D mm
mass		About 1.1 kg (excluding accessories)
Compliant standard	safety	EN61010-1: 2001, Pollution degree 2
	EMC	EN61326:1997+A1:1998+A2:2001, EN61000-3-2:2000 EN61000-3-3:1995+A1:2001
accessories		Power cord (1), instruction manual (1), spare fuse (1) , 100V/120V, shipping: 100V, 120V F1.0 AL/250V, φ5×20mm , 220V/240V, shipping: 220V, 240V F0.5 AL/250V, φ5×20mm

*	If the measured current value is large, it may not be possible to use two simultaneously.

Current Probes SS-270/SS-260

SS-270 / SS-260 main unit (POWER SUPPLY IS REQUIRED SEPARATELY)

■	Main features

	High current 150A, 500A compatible model

	Large diameter clamp type current measurement

	Clamp type that can be easily measured without cutting the path

	Equipped with simple protection function for excessive input

	Can be used with measuring instruments that do not have a probe power supply ( power can be supplied by the optional probe power supply PS-26 )

	High sensitivity due to adoption of thin film Hall element

■	Product Specifications

item		SS-270	SS-260
frequency band		DC to 2MHz (-3dB)	DC to 10MHz (-3dB)
Maximum allowable input current		500A rms (maximum input range) 700A peak (maximum peak current) non-continuously	150A rms rms (maximum input range) Discontinuous 300A peak (maximum peak current)
Output sensitivity		0.01V/A
Accuracy of sensitivity		Up to 500 Arms ±1.0% of reading ±5 mV (with probe alone) Beyond 500 Arms ±700% peak or less, ±2.0% of reading in the range of DC and AC45 to 66Hz (in probe only)	Up to 150 Arms ±1.0% of reading ±1 mV (with probe alone) Beyond 150 Arms ±2.0% of reading within 300A peak, DC, and AC45 to 66Hz (in probe only)
noise		25mA rms or less (observed with an oscilloscope with a bandwidth of 20MHz)
power consumption		7.2VA max	5.5VA max
Power-supply voltage		±12V ±0.5V	±12V ±1V
Operating temperature and humidity range		0℃ to +40℃, 80%RH or less (no condensation)
Storage temperature and humidity range		-10℃～+50℃, 80%RH or less (no condensation)
Operating altitude		Altitude 2000m or less (atmospheric pressure about 79kPa) Indoor
Effect of external magnetic field		800mA maximum (DC and 60Hz, 400A/m AC magnetic field)	Maximum 150mA equivalent (DC and 60Hz, AC magnetic field of 400A/m)
Maximum circuit voltage used		600V, CAT II (insulated conductor)
Measurable conductor diameter		φ20 mm
Cable length	Sensor cable	About 2m
	power cable	About 1m
size	Sensor part	About 176W x 69H x 27D mm
	Termination section	About 27W x 55H x 18D mm
mass		About 520g	About 500g
Compliant standard	safety	EN61010-2-032 :2002 B type measurement category II, III (expected transient overvoltage 4000V), pollution degree 2
	EMC	EN61326-1: 2006
accessories		Instruction manual (1), case (1)	Instruction manual (1), case (1)
