Model number |
SS-320 |
frequency band |
DC to 100 MHz (-3 dB) *Refer to derating characteristics |
Damping ratio |
50:1, 500:1 |
Accuracy |
±2% (20ºC to 30ºC)
*When connected to an oscilloscope with an input impedance of 1 MΩ ±1% |
DC CMRR |
-70 dB* at input voltage of 500 VDC |
AC CMRR |
-80 dB (50 Hz/60 Hz) / -50 dB (100 kHz) / -50 dB (1 MHz) |
Transmission delay |
12.5 ns (500:1, typical), 13.5 ns (50:1, typical) |
Input R//C |
4 MΩ or more // 7.0 pF or less from each
input to GND |
Between inputs |
8 MΩ or more // 3.5 pF or less |
Maximum differential operating voltage |
±1400 V (DC+AC peak, 500:1), ±140 V (DC+AC peak, 50:1) |
Maximum common mode operating voltage |
±1400 V (DC+AC peak) or ±1000 Vrms |
Maximum non-destructive
(differential mode, common mode) |
±1500 V (DC+AC peak), 1300 Vrms |
Maximum output voltage range |
±2.8 V*1 MΩ ±1% connected to oscilloscope |
Output offset |
Adjustable with other equipment to be combined |
Connector output side/input side |
BNC type/special 6-core connector |
full length |
2000 mm ±30 mm |
Power cable length |
1000 mm ± 20 mm |
Input lead length |
405 mm ± 5 mm |
mass |
450 g or less |
Guaranteed temperature range |
0ºC to +50ºC, but no dew condensation |
Operating temperature/humidity |
-10ºC to +50ºC, (no condensation) / 80%RH or less (at 40ºC) |
accessories |

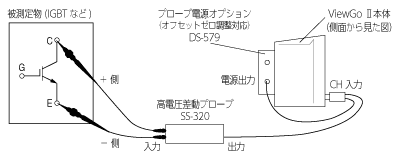

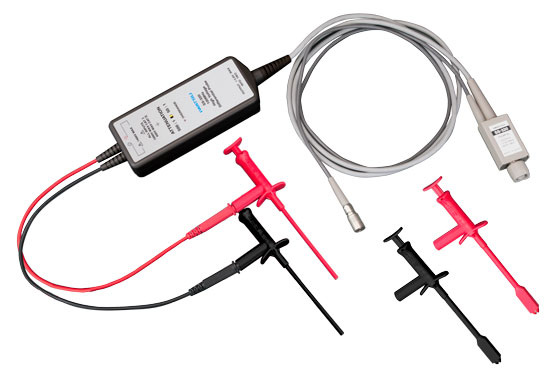

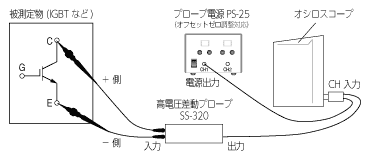

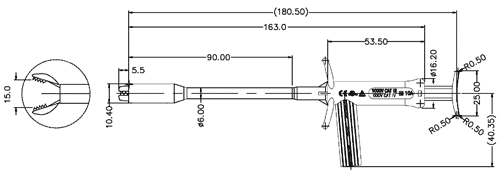

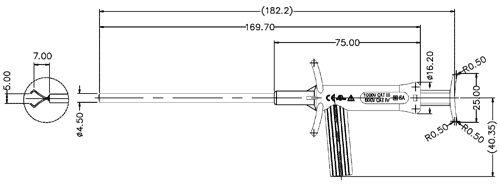

Crocodile clips (red, black) 1 each, plunger hook clips (red, black) 1
each, instruction manual |
