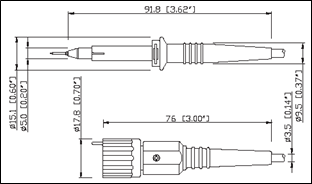

PMM Series Passive Probe



■Probing between pins of 0.8 mm to 1.27 mm is possible ■There are two HF adjustment points on the PMM511A ■ Adjustment Tool T (not for PMM301A)

Example of attachments (attachments may change due to changes in specifications)

■ Probe
■ Manual
■ Spring Tips 0.8mm & 0.38mm
■ Solid Tip 0.8mm
■ Coding Rings (set) 3x4 colors
■ Ground Lead 15cm
■ Ground Blade 5.0
■ 2x Self-adhesive Cu Pads

■Insulating Cap 5.0
■Protection Cap 5.0
■IC-Cap 0.8 to 1.27mm pitch
■Sprung hook 5.0
■Ground Spring
■BNC Adapter 5.0
■2 Footer Positioner
■Adjustment Tool T (NOT FOR PMM301A)
　

Type name	Damping ratio	Input RC		Band [MHz]	Conformity capacity (pF)	Rise time [nsec]	Cable length (m)
Type name	Damping ratio	R [Ω]	C (pF)	Band [MHz]	Conformity capacity (pF)	Rise time [nsec]	Cable length (m)
PMM 301A RO	1.1	1M	32	Fifty	-	7	1.1
PMM 311A RO	10:1	10M	12	300	7 ~ 25	1.1	1.2
PMM 511A RO	10:1	10M	11	500	7 ~ 25	0.7	1.2

*Please contact us for orders other than RO (with lead-out pin).
