Voltage Probes (Select by temperature)
-55ºC to 155ºC Environmental probe
|
|
|

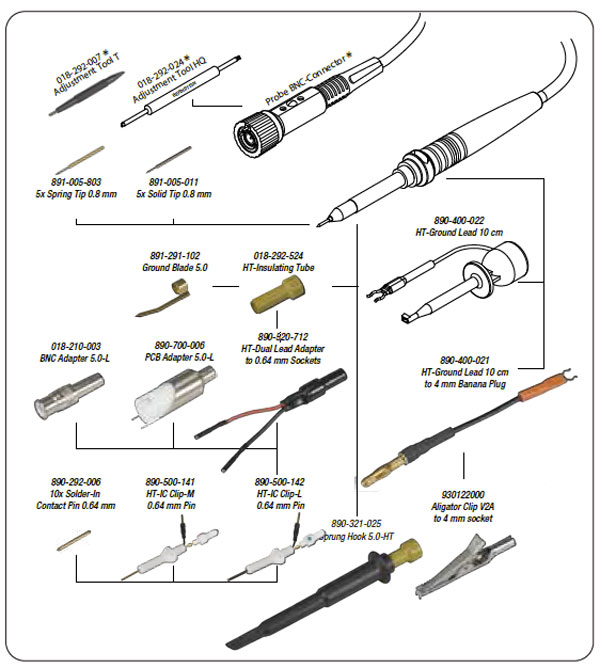

* : Standard accessories
|
Model |
Attenuation Ratio |
Cable length |
Input RC |
Frequency BW |
Compensation range |
Max. input voltage |
Temperature Range |
PHT312-RO |
10:1 |
Approx.2m |
4.4MΩ±1%//20pF |
350MHz |
10-25pF |
400Vrms |
-55ºC to 155ºC |

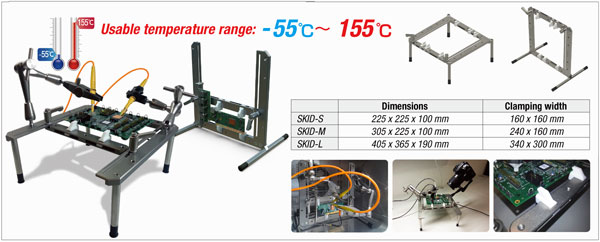

-55ºC to 155ºC SKID-PCBA Frame
|
