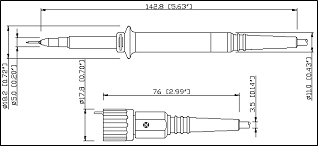

PHV1000 / PHVS1000 passive probe


1kVrms 6kV(peak pulse)

■ Replaceable with spring tip

Examples of attachments (attachments may change due to changes in specifications)

■ Probe
■ Manual
■ Spring Tip 0.8mm
■ Solid Tip 0.8mm
■ Sprung Hook 5.0-L
■ Insulating Cap 5.0-L
■ Protection Cap 5.0-L
■ Ground Lead 22 cm

■ Adjustment Tool T

Additionally when delivered in CASE :
■ BNC Adapter 5.0-L
■ Coding Rings 4 (set) 3x4 Colors
■ Flexible Adapter 5.0-L
■ Ground Lead 22cm to 4mm Banana Plug
■ Safety Alligator Clip red

Type name	Damping ratio	Input RC		Band [MHz]	Compensation range (pF)	Rise time [ns]	Cable length (m)
		R [Ω]	C (pF)
PHV1000 RO	100:1	50M	7.5	400	10 ~ 50	0.9	2
PHV1000-3 RO				250		1.4	3
PHVS1000 RO	1000:1	50M	7.5	400	10 ~ 50	0.9	2
PHVS1000-3 RO				250		1.4	3

*Please contact us for orders other than RO (with lead-out pin).
