PKT High Z-Cable Divider

Product pictures

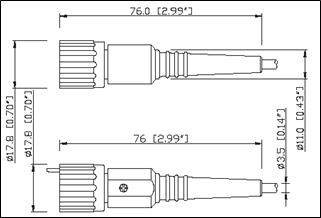

Dimensions



■ Cable/divider input: BNC output: BNC
■ 500MHz band
■ Two HF adjustment points



Example
of attachments (attachments may change due to changes in specifications)

■ Cable divider body
■ Manual
■ Color ring 4 colors each 3 pieces
■ Adjustment tool

Type name

Damping ratio

Input RC

Band [MHz]

Conformity capacity (pF)

Rise time [nsec]

Cable length (m)

R [Ω]

C (pF)

PKT 512A RO

10:1

10M

10

500

7 ~ 25

0.7

1.2

PKT 520A RO

10:1

10M

13

400

10 ~ 40

0.9

2.0

PKT 530A RO

10:1

10M

16

280

10 ~ 40

1.25

3.0

PKT 920A RO

100:1

50M

6

350

10 ~ 50

1

2.0

*Please contact us for orders other than RO (with lead-out pin).

Characteristic diagram

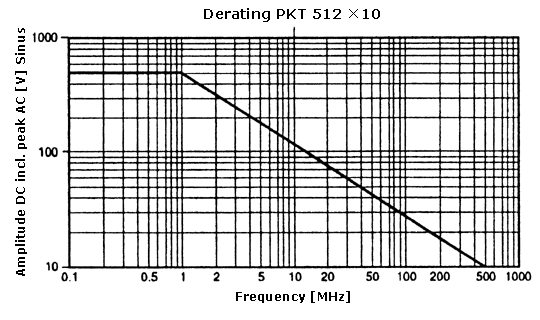

Derating PKT 512 ×10
