TETRIS series active probe (FET probe)



TETRIS Active Probe will be able to contact in parallel to the pins of 2.54mm pitch in close proximity. The housing of this probe is T-shaped, and the probes can be stacked without restriction by stacking them one after another. In this way, multiple measurements can be performed simultaneously.



TETRIS

2.54mm Pitch



■ High input impedance: 1 , low capacitance: 0.9 pF
■ Replaceable tip spring tip
■ Can contact IC leads of 2.54 mm pitch in close proximity
■ Can be connected to any 50 Ω input measuring instrument



The TETRIS active probe was produced as an independent measurement system by a probe manufacturer for oscilloscopes.
The small form factor and convenient accessories simplify your measurement tasks.

Not only does it fit tightly in tight spaces, but it can also contact very small test points and vias.



■High input impedance in the frequency band DC up to 2.5 GHz

With an input resistance of 1 and an input capacitance of 0.9 pF, TETRIS is suitable for measuring all frequency ranges. All 3 models cover the band from DC to 2.5 GHz.

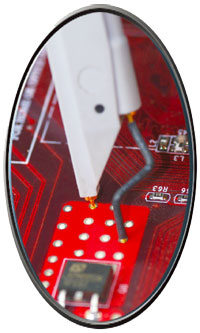

The ground plane and the use of copper pads allow the GND connection to be kept as short as possible for measurements close to the true value on the IC.

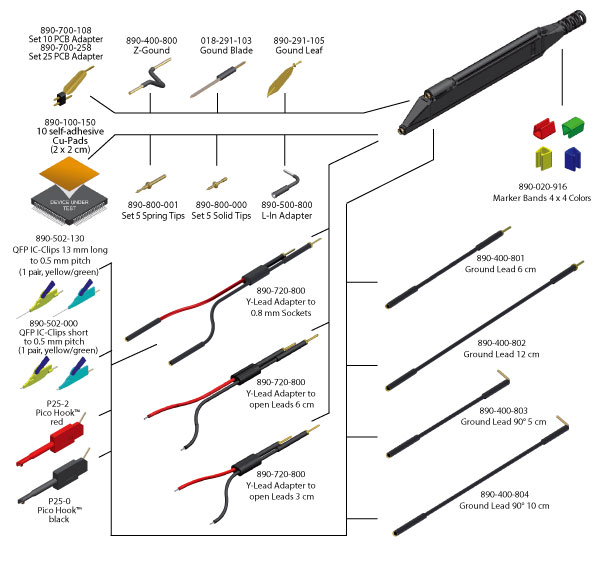

Scope of delivery

The following items are included in the scope of delivery :

■ Probe
■ Spring Tip
■ Solid Tip
■ L-In Adapter
■ Ground Blade
■ 2 self-adhesive Cu-pads

■ Ground Lead 6 cm
■ Ground Lead 12 cm
■ Ground Lead 90° 5 cm
■ Ground Lead 90° 10 cm
■ Y-lead adapter to 0.8 mm sockets
Picohook™ black

Picohook™ red
■ Marker Bands 4 Colors
■ Z-Ground
■ PCB Adapter
■ Ground Leaf
■ Power Supply





Model

TETRIS 1000

TETRIS 1500

TETRIS 2500

Order-No.

881-000-INT

881-500-INT

882-500-INT

Attenuation ratio

10:1

Input RC

1  // 0.9pF

Input coupling

50 Ω

Frequency bandwidth (Probe Only)

1.0 GHz

1.5 GHz

2.5 GHz

System bandwidth (-3dB)

600MHz

1 GHz

2 GHz

Dynamic measuring range

± 8 V

Maximum input voltage

20 V

Cable length

1.3 m
