1 |
LAN interface allows remote control of TS-81000/80600 through network. Net work printer function is also supported. |
|
2 |
Video capture is available with Personal Computer and video capture card (NTSC). |
|
3 |
NTSC output can be recorded for a long time on VTR. |
|
4 |
Since ATA card slot is standard, waveform and setting conditions can be stored to ATA card(Smart Media, Compact Flush Card etc.). |
|
5 |
NTSC and VGA can be connected to large-size monitor for some members checking. |
| Applications |
|
|
| Remote control through LAN | Network printer support |
| Remote control is
available through LAN. Video signal(NTSC, VGA) can be
delivered. Real time waveform monitor is available. |
Hard copy to printers which connected to LAN is available by using "Network Printer Gateway" software. |
|
|
|
| NTSC output | Saveing as a numeric data file from displayed waveform |

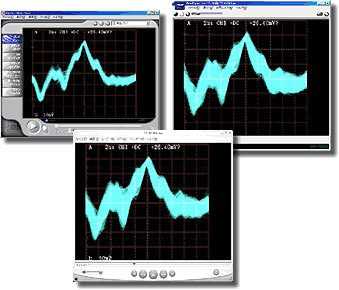

| Displayed waveform can be stored as a Moving Picture files by using retailed video capture unit. | It is possible to convert displayed waveform to numeric data. The right picture is drawn by using CALC application software. |
|
|
|
