BP4610 ±60V, ±10A(30Ap-p)	BP4620 ±60V, ±20A(60Ap-p)

Sequence Function for Fully Programmable Output Pattern Bipolar Output Good for Inductive and Capacitive Loads !!

As a power supply for testing vehicle electrical and electronic components/motor/solenoid/large capacitors and as electronic load for testing power supplies / batteries..... Can be used for various applications.

Features

	Built-in 255-step sequential signal source
	Voltage/Current output for four quadrants
	High power : ±60V (Can be shifted) BP4610 : ±10A (30Ap-p) BP4612 : ±20A (60Ap-p)
	Wide band: DC to 150kHz (CV)
	Constant voltage (CV) / Constant current (CC) operation selectable
	Response calibration function
	Voltage/Current limiter, measurement display function
	USB interface and external analogue input
	Available for Sequence Editing Software (BP0421E optional)

Enriched Basic Performance

Fully equipped specification providing high voltage, high current, high speed, and constant current operation.
High voltage required in testing 12V/24V/42V vehicle electrical and electronic components, high current necessary for large parts, high speed required in driving actuators, and furthermore, constant current operation effective in driving solenoids with low impedance. With enriched specfication satisfying all such requirements, BP series responds to the needs in developement of devices and device testing.		BP4610 BP4620 High output voltage 120Vp-p Output range can be shifted to -5 V to +115 V and -115 V to +5 V, depending on limiter setting High current ±10A (DC) 30Ap-p ±20A (DC) 60Ap-p Wide band DC to 150kHz Operation mode Constant voltage (CV) / Constant current (CC) operation selectable

Wide-Ranging Output Area

Bipolar power source capable of handling positive/negative voltage and sink/source current
BP series can output in four quadrants and is capable of handling two directions of current, which are source (supply) and sink (absorption) current, let alone positive/ negative voltage. From devices that generate back electromotive force such as solenoids, capacitive load such as electrolytic capacitor, and even to piezoelectric material charged with electromotive force and power sources and batteries such as fuel cells, you can connect BP4610 to devices and systems that cannot be driven with normal DC power supply with a sense of security.

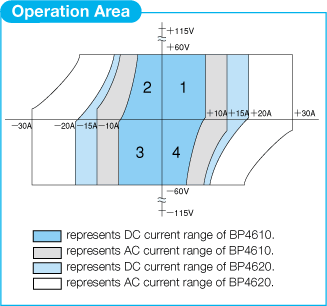

	•This is an example with outpu of voltage ±60V. •>Depending on the limiter setting, the output voltage can be shifted to -5V to +115V and -115V to +5V (Output current range changes when the ouput range shifts.) •The number 1 to 4 stands for the quadrant nnumber.

Universal Output Pattern

Built-in sequential signal source that allows you to use sweep and arbitrary waveform BP series has a built-in sequential signal source. For example, by programming a series of voltage change pattern used in voltage fluctuation test on electrical and electronic components, the test can be done in a single operation since the output changes in order according to the procedure. When setting a sequence, you can use DC (direct current), sine wave, and square wave provided in the system and arbitrary waveform (16 types) loaded via USB interface. Maximum of 255 steps (minimum 0.1 ms per step) can be set and waveform, level, duration, and continuous/sweep can be selected for each step. Furthermore, you can specify repetition of sequence for 1 to 999 times (or continuous). In addition, the power supply provides branch operation in which the external trigger input moves the sequence to a specified step, the function to stop the sequence, and the function to hold the operation. Various Output Patterns Using Sequence Functions Relay Operation Test (Withstand Power Supply Fluctuation Test) Vehicle Electrical and Electronic Components Test (ISO/DIS7637-2.2 Pulse 4) (Simulation of Transient Voltage Drops at Startup)

Optimum Response for Each Load

Response calibration function

BP series has a new response calibration function that allows users to individually optimize transient response characteristic in square wave output or sudden output change. Transient response for load with complicated impedance characteristic such as electromagnetic components with inductance (coil component) or capacitance (capacitor component) differs among loads. BP series has a new and convenient response calibration function with which users can adjust response characteristic according to the load.

Before Calibration   After Calibration

Attentive Additional Functions

	Voltage/Current limiter effective in preventing load failure
	AC/DC voltage/current measurement display for monitoring output state
	USB interface easily connectable with PC
	External analogue input that can be used even for oscillators and record signal
	Output ON/OFF function, monitor output, store/recall memory, external control input/output, and key lock
	Worldwide-compatible power input of 90 V to 250 V (BP4610)

Applications

1.	For power supply voltage fluctuation test on 12V/24V/ 42V vehicle electrical and electronic components

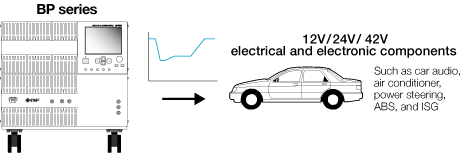

With BP series, you can perform power supply voltage fluctuation test on various vehicle electrical and electronic components. You can program a certain pattern in advance using the sequence function of the power supply. The power supply handles the test on 42V components let alone 12V/24V components.

2.	As a constant current power supply for generating magnetic field

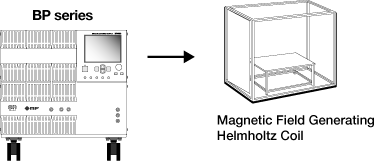

In electromagnetic field test, constant current needs to be supplied to the coil for stable generation of constant magnetic field. BP series can output constant current (CC) to keep the current running through the coil constant and generate stable magnetic field.

3.	As a constant current power supply for capacitor ripple test

Using this power supply, you can perform ripple test on the units using capacitor(s) such as inverters. The constant current (CC) of BP series allows you to perform test with stable operation. You can also program output patterns using the sequence function.

4.	As a constant current power supply for plating

The power supply can be used as a constant current power supply for plating various electronic materials. Using the constant current (CC) output of BP series, you can always supply constant and stable current. You can also program output patterns using the sequence function.

Options

Monitoring the Sequence Execution

BP0421E is a program that supports the sequence function of Bipolar DC Power Supply BP series (BP4610 and BP4620). It runs under the Windows operating system in a personal computer, and controls transfer and execution of data for the sequence on the BP series via USB.
