SLM3505 Selective Level Meter

Selective Level Meter

Portable selective level meter with colour display and USB memory stick interface for data transfer. Includes VSWR and impedance measurement.

Field Portable Power Line Communications Analysis

The SLM3505 was designed to provide a single instrument solution for the Electric Utility System Protection Engineer and Relay/Communications Technician responsible for the alignment and maintenance of Power Line Carrier, Audio Tone and FSK Communications Systems. This multifunction instrument replaces all 4 existing Power Line Carrier Instruments in one for a fraction of the cost, all in a compact lightweight package.

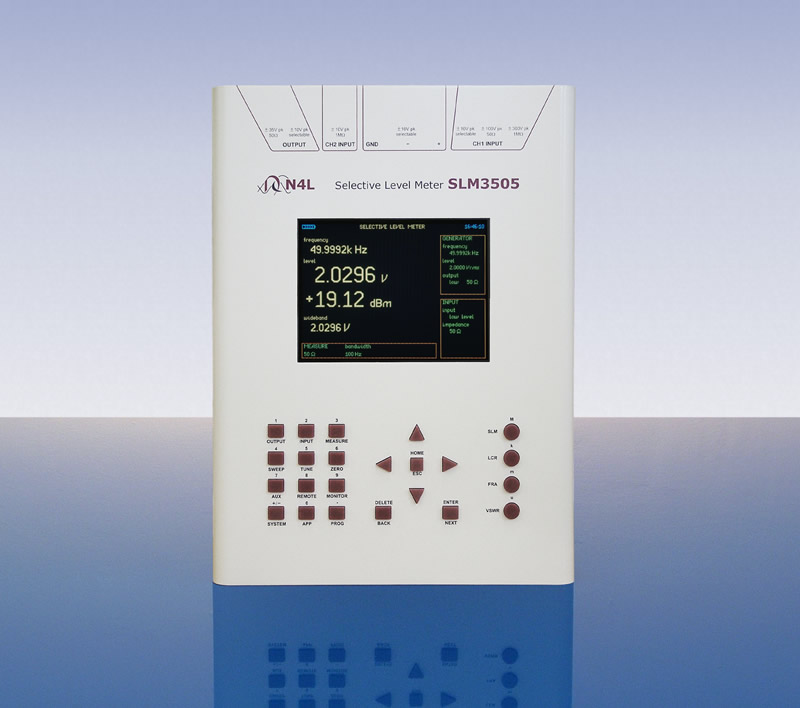

SLM3505: Selective Level Meter

Instrument Functions

SLM3505: top of unit

- Single and Dual Frequency Selective Level Meter - Impedance Analyzer (LCR Measurements)
- Frequency Response Analyzer - VSWR Meter
- Signal Generator - Oscilloscope


Applications

SLM3505: base of unit

- Power Line Carrier Alignment & Maintenance - PLC Transmitter & Receiver Test & Set-up
- Line Trap Alignment & Test . - Line Tuner Alignment & Test
- Audio Tone Protective Relay Channel Test & Set-up - FSK Telemetry Testing






This product is designed, manufactured & supported in the UK. All measurements are traceable to UKAS, certificates of conformance and calibration are supplied as standard. Our products are CE marked.








Downloads

Brochure & Technical Specifications

PDF, 344Kb
